Wenzhou Newsway Valve Co., Ltd. products

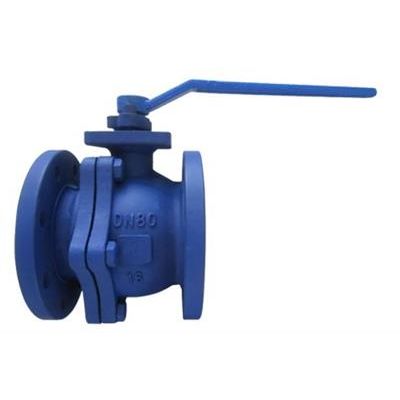

2-Piece, Full Port, Cast Iron Flanged Ball Valves. Body: Cast iron/Ductile iron. Nut/bolting: Carbon Steel. Ball: Stainless Steel 304. Seat: PTFE. Stem: SS304. Lever: Ductile Iron(GGG40). Operation: Handle lever/gear box/actuators. Size: DN25~DN250. Pressure: PN10/16. Standard:. Working temperature: -20 ° C ~ +120 ° C. Face To Face: DIN3202 DN15-DN100 DIN3202 (F4). DN125-DN250 DIN3202 (F5). End Flange Dimensions: EN 1092-2 etc.. Testing: DIN3230, API598. Medium: Water, oil, gas etc.

Novel and reasonable design, special structure. light,  Easy instllation and mintenance. lt can be mounted wherever needed. Tiny operative moment. quick 90 degrees on-off operation. Miniminzed operating torque, energy saving. Flow curve tending to straight line. Excellent regulation performance. Long servie life. Standing the test of tens of thousands opening/closing operation. Bubbles-tight sealing with no leakage under the pressure test. Wide selection of materials,  applicable for various medeium.

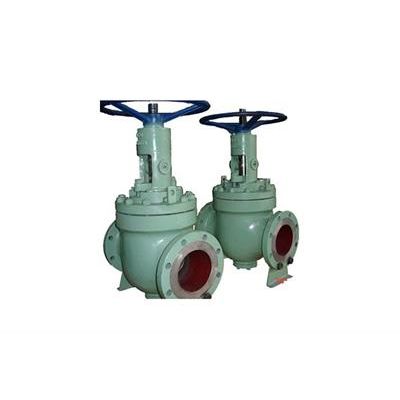

Size:NPS l/2"-2". Pressure: Class 150LBS-2500LBS. Body material: A105; LF2, 304(L); 316(L), F347, F32L etc. Structure type: bolted bonnet, welded bonnet, pressure seal bonnet. Basic Standard: Desian & Manufacture Std.:API602. BS 5352 .ASME B16.34. Face to face std.: manufacture standard or ANSI B16.10 for Flanae. End connection std.: ANSI B 16.11, ANSI B 1.20.1,ANSIB.16.25,ANSIB16.5. Test standard: ISO5208. API598D.

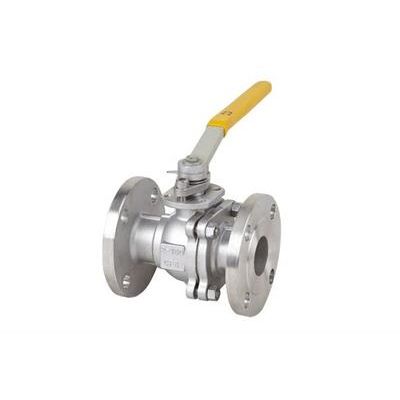

Floating ball valve in cast steel Floating ball valve in cast steel (CLASS 150~300) Bolted bonnet, Two-piece Body, Floating Ball Full or Reduced bore, Blowout Proof Stem Fire safe and Anti static Stainless steel ball ASTM A216 WCB, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M.

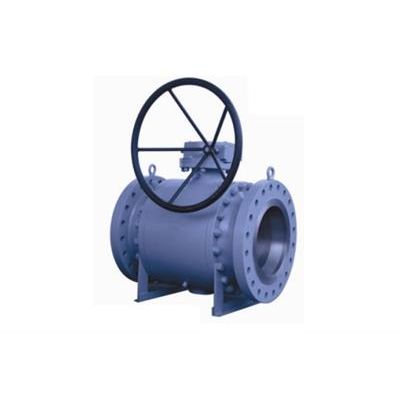

API ball valve. Size:l"~48". Pressure Rating: Classl50~Class2500. Material: WCB,WC6,A105,LF2,LCB,LCC, F304,SS316,. Duplex stainess steel.super stainess steel. Ball Type: Trunnion Mounted Ball. Port Type: Full Bore, reduced bore.. Design Standards Design and Manufacture as per: API6D ASME B16.34.

API ball valve. Size:l"~48". Pressure Rating: Classl50~Class2500. Material: WCB,WC6,A105,LF2,LCB,LCC, F304,SS316,. Duplex stainess steel.super stainess steel. Ball Type: Trunnion Mounted Ball. Port Type: Full Bore, reduced bore.. Design Standards: Design and Manufacture as per: API6D ASME B16.34. Structual Length as per: API6D  ASME16.10.

Summary: The valve is suitable for use in petrochemical industry, liquefied petroleum gas storage, refinery, natural gas, compressor system, oil and gas transportation pipeline, light industry, textile and other industries.

Summary: The valve is suitable for use in petrochemical industry, liquefied petroleum gas storage, refinery, natural gas, compressor system, oil and gas transportation pipeline, light industry, textile and other industries.

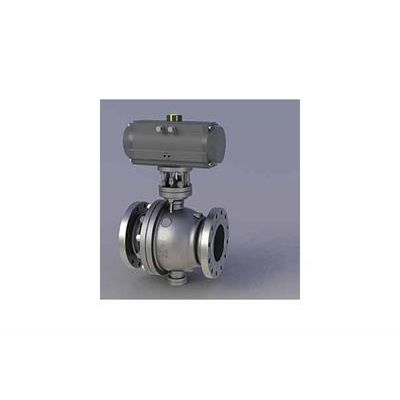

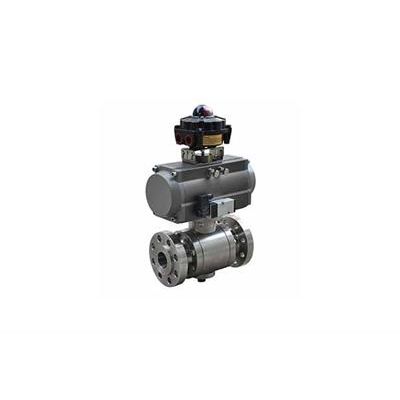

Pneumatic actuator trunnion ball valve: Size: 2" -56". Class 150--2500LB. Full Bore Trunnion Ball Valve. Applicable Standards. Ball valve : API 6D. Fire safe : API 607. And static : API 608. Face to face: ASME B 16.10. End flanges : ASME B 16.5 &. MSS SP-82. Butt welding ends : ASME B 16.25. Inspection and test: API 598 / API 6D.

High Pressure Forged Stainless Steel Ball Valve such as: Size:2"-42". Pressure: API3000API5000 600# 2500#. Forged steel bolted or all welded body. Options include stem extensions, actuators, pipe pups and specialized coatings. Forged material: A105 F316/F316L, F304/F304L, F321, F11, F5, F22andsoon. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on.
