Wenzhou Ruixin Valve Co.,Ltd. products

Gate Valve

Ruixin Valve - Threaded Casting Gate Valve

Size : 1/2 inch - 4 inch. Pressure Rating : 200 PSI. Standard Connections : Threaded (BSP. NPT. PT. DIN 259, 2999). Material : Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB.

Globe Valve

Ruixin Valve - Threaded Casting Globe Valve

Size : 1/2 inch - 4 inch. Pressure Rating : 200 PSI. Standard Connections : Threaded (BSP. NPT. PT. DIN 259, 2999). Material : Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB.

Ball Valve

Ruixin Valve - Model API - Floating Ball Valve

Size : 1/2 inch - 10 inch. Pressure Rating : 150LB-600LB. Standard Connections : Flanged Ends (RF,FF). Material: Body/Bonnet: A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC. Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC. Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal.

Ruixin Valve - Model 2PC - Cast Steel Trunnion Mounted Ball Valve

Size : 2 inch - 24 inch. Pressure Rating : 150LB - 2500 LB. Standard Connections : Flanged Ends (RF,FF). Material : Body/Bonnet: A216WCB ,A351 CF8 ,A351 CF8M,A351 CF3,A351 CF3M,A351 CF8C,A352 LCB ECT. Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC. Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal.

Ruixin Valve - Model API6D - Trunnion Mounted Ball Valve Forging Steel

Size : 2 inch - 24 inch. Pressure Rating : 150LB - 2500 LB. Standard Connections : Flanged Ends (RF,FF). Material: Body/Bonnet: A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC. Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC. Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal.

Ruixin Valve - Flanged 3 Way Ball Valve

Size : 1/2 inch - 8 inch. Pressure Rating : 150 LB - 300 LB. Standard Connections : Flanged Ends (RF,FF). Material : Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB. Ball:CF8M (SS316), CF8 (SS304). Stem:AISI 410,AISI 304,AISI 316.

Ruixin Valve - Forged BW Ball Valve with extend nipple

Size : 1/2 inch ~ 2 inch. Pressure Rating : 800LB ‐ 2500LB. Standard Connections : NPT,BSP,SW,BW. Material: Body/ Bonnet: A105, A350 LF2 , A182 F11, F22, A182 F304, F316 , F316L. A182 F51. Monel, 20# Alloy, Etc. Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC. Seat: PTFE, RPTFE, PEEK,NYLON.

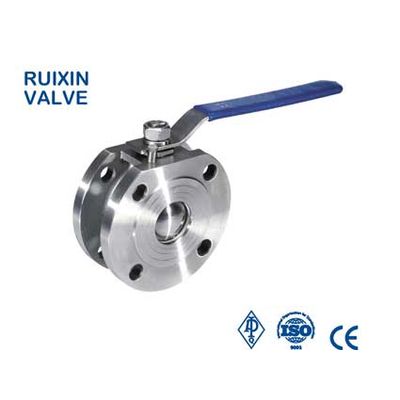

RXVAL - Model 1PC - Wafer Type Ball Valve Flange end

Product Details Size 1/2 inch - 6 inch Pressure Rating ANSI 150 LBS~~ANSI 300 LBS,PN16-PN40,JIS5K-20K Standard Connections Flanged Ends (RF,FF) Material Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB Ball:CF8M (SS316), CF8 (SS304) Features And Benefits Full Bore Mounting Pad Available Fire Safety Seat Sealing Temperature range: -60 to 450 °F Blow-out proof stem 100% leakage tested Locking device (option) ISO-5211 mounting pad for actuator (option) Standard Design and Manufactures: API 6D,API 608, BS5351 Face To Face : ANSI B16.10 /JIS B2002 /DIN 3202 Flange Dimensions: ANSI B16.5/ JIS B2220 / DIN 2633 Checking & Test :API 598 / DIN 12266 Other sizes and pressure classes available. Contact the company for specifications.

Check Valve

Ruixin Valve - Model BS1868 - Flanged End Swing Check Valve

Size : 2 inch - 48 inch. Pressure Rating : 150 LB- 1500 LB. Standard Connections : Flanged Ends (RF,FF). Material : Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC. Seat: A105+13CR / A105+STELLITE 6,ETC. Trim: NO.1 â€ NO.14.

Ruixin Valve - High Pressure Sealed Swing Check Valve

Size : 2 inch - 48 inch. Pressure Rating : 150LB - 2500 LB. Standard Connections : Flanged Ends (RF,FF). Material : Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC. Seat: A105+13CR / A105+STELLITE 6,ETC. Trim: NO.1 â€ NO.14.
