In case of a pipe or tube rupture load control valves avoid uncontrolled movement of the cylinder. They also serve for an exact and stable positioning of the boom and enable sensitive and even movement processes. Load control valves can compensate for leakages on the main control valves in older construction machines.The design LHB 4-N is characterized by a stepped design, which optimally affects the installation conditions on the cylinder.

In case of a pipe or tube rupture load control valves avoid uncontrolled movement of the cylinder. They also serve for an exact and stable positioning of the boom and enable sensitive and even movement processes. Load control valves can compensate for leakages on the main control valves in older construction machines. The type LHB 4-K is characterized by a very compact design and is therefore suitable for the smallest installation spaces.

In case of a pipe or tube rupture load control valves avoid uncontrolled movement of the cylinder. They also serve for an exact and stable positioning of the boom and enable sensitive and even movement processes. Load control valves can compensate for leakages on the main control valves in older construction machines. The design LHB 3-R performs an internal regeneration circuit. The returning volume flow is dammed up by a check valve and routed into the rod side. The cylinder can thus be retracted without the need for a delivery rate of the pump. The regeneration function enables an increase in handling performance and at the same time reduces fuel consumption.

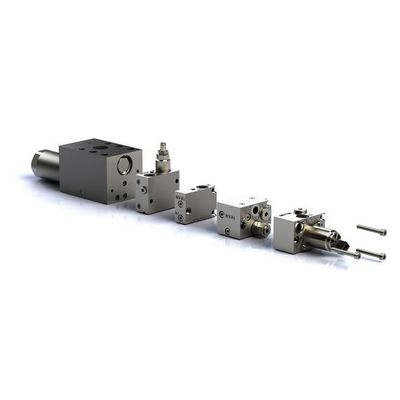

Lowering brake valves of this type series prevent hydraulic actuators from running ahead of the available oil supply. They are leakagefree and open independently of the load pressure by the pressure of the opposite side.The newly developed MotionOne lowering brake valve is suitable for morors and cylinder applications and is the right choice when it comes to precisely controlling and positioning high loads of up to 600l/min. The modular design with the different control options guarantees maximum flexibility during installation. The MotionOne is suitable for applications with light to heavy oscillation. The newly developed damping cartridge is particularly suitable for applications that are highly susceptible to oscillations.In accordance with the modular design, users can essentially choose between standard covers with and without pressure relief valve, electrical proportional control or the newly developed damping cartridge for the MotionOne.

This counterbalance valve is particularly suitable for vibration-prone cylinder applications. The valves have a lowering brake function and a pressure valve function. The opening level of the lowering brake valve is independent of the set opening level of the pressure relief valve. It is possible to connect the pressure valve to a separate tank line, this allows the use of a main valve with closed center position.

Flow control valves of this product group are used to supply single acting hydraulic consumers, such as hydraulic motors, hydraulic hammers, etc. with a controlled flow rate. This volume flow is divided of a main volume flow by means of the flow control valve. The flow control valve of the design 1N can be used as a 2-way or 3-way flow controller (pressure compensator) for flows up to 200 l / min and enables the operation of additional single-acting consumers. The additional consumer can be operated simultaneously to the normal machine functions. The volume flow and pressure to the auxiliary function is independent of the pressure and the volume flow of the main functions in the machine.

Flow control valves of this product group are used to supply single acting hydraulic consumers, such as hydraulic motors, hydraulic hammers, etc. with a controlled flow rate. This volume flow is divided of a main volume flow by means of the flow control valve. The flow control valve of the design 2N can be used as a 2-way or 3-way flow controller (pressure compensator) for flows up to 550 l / min and enables the operation of additional single-acting consumers. The additional consumer can be operated simultaneously to the normal machine functions. The volume flow and pressure to the auxiliary function is independent of the pressure and the volume flow of the main functions in the machine.

WESSEL flow divider valves divide the input volume flow in a specific ratio into two partial volume flows. The partial volume flows can have the same value or different, but the division ratio remains constant regardless of the difference between the inlet pressure and the load pressures.

The flow divider valve type FDV-CA divides a volume flow independent of the pressure conditions into two fixed partial flows. There are different cartridges and thus division ratios available. The valve is also available as a complete solution in the associated housing.

The throttle check valve TCV is generally suitable for setting the movement speed in a certain flow direction. Another application is to prevent cavitation and thus too high extending speed of cylinders, which are caused by pulling loads.
