Westech Scientific Instruments (Westech) products

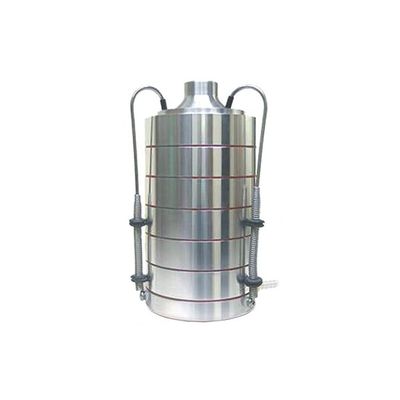

The Six Stage Bioaerosol Sampler is a cost effective, multi-stage, multi-orifice cascade impactor that measures concentration and particle size distribution of aerosol-type bacteria and fungi in the ambient air. Based on the inertial impaction principle, the six stage viable impactor collects all particles, regardless of physical size, shape, or density. The particles are aerodynamically sized in which there is a direct relationship to the penetration of the lung.

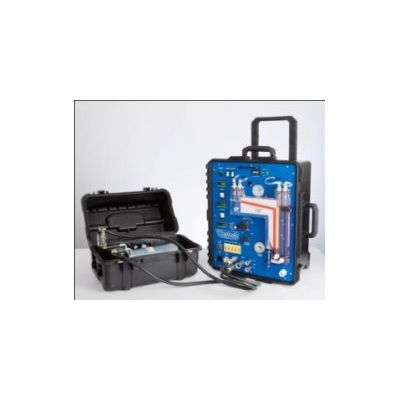

Mini Gas Sampling Train for Low Flow Constant rate Vapour phase Gas with options for Heated Filter Box & Filter. The system can also be used in conjunction with Wesetch’s Standard Manual Stack Sampling Train (MST) for Side Stream Sampling of gases.

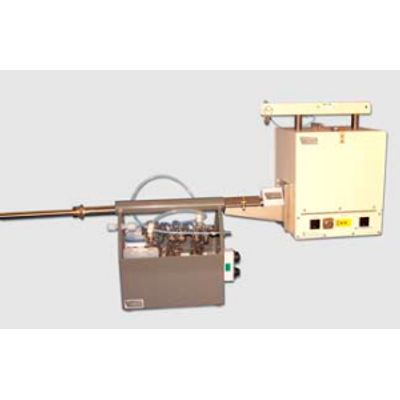

The M9096 In-Stack Manual Method Particulate Sampler for ISO9096, EN13284-1, US EPA Method 17

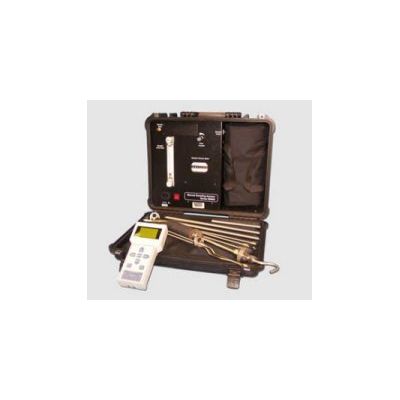

Westech Scientific Instruments (Westech) provides a complete range of Manual Stack Trains for isokinetic and gas sampling of emissions to determine all major emitted pollutants. The standard equipment is modified to meet all current European legislation and requirements and will still comply with existing USEPA methods. A complete range of Standard Reference Methods can be covered including those for particulate, dioxins, metals, criteria gaseous pollutants, halides and volatile organic compounds (VOCs).

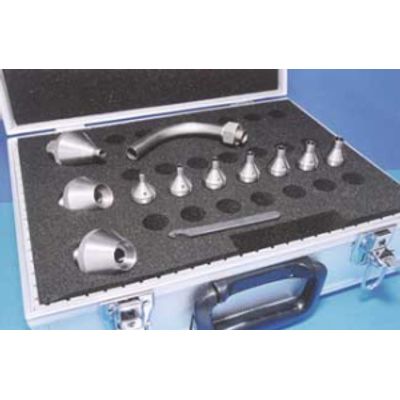

Westech can supply a complete range of nozzles and filter holders for all applications and to comply with European and other International standards and methodologies.

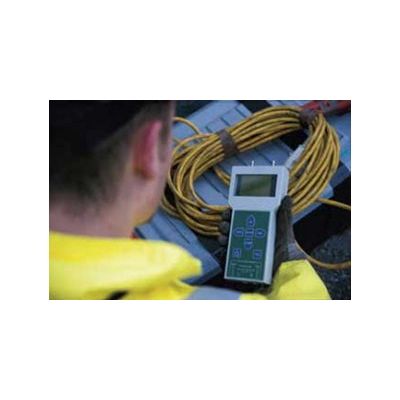

The Profile is a portable handheld microprocessor based instrument that enables the operator to determine the velocity profile in a duct or stack. It achieves this by measuring the temperature and differential pressure in a flowing air or gas stream. It also measures the ambient pressure and temperature and logs all the data recorded on a point by point basis. The Profile will log up to 20 separate tests and store the point by point sample information for up to 4 traverses, along with the averages for each traverse. Once collected the information can be displayed on the Profiles own screen or downloaded to a PC for data processing and report generation.

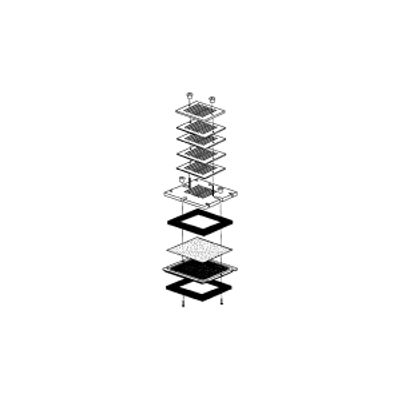

The 230 series provides a simple, accurate, and yet low-cost means of obtaining the particle size distribution and respirable mass fraction of suspended particulates in outdoor and occupational environments. The unique slotted impactor design features the ultimate in precision, predictability, and sharpness of cut-off, combined with compactness, ease-of-use, and the lowest internal losses.

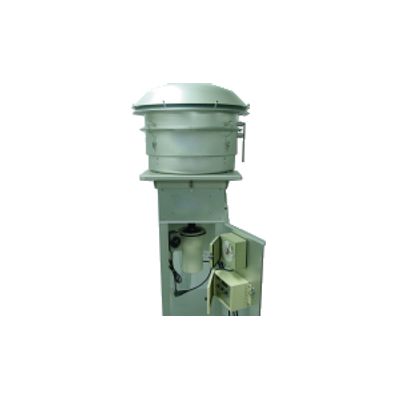

Mass Flow Controlled PM10 System. Includes size selective inlet (10 micron cut size), anodized aluminium shelter, 8` x 10` stainless steel filter holder with probe hole, blower motor assembly, continuous flow/pressure recorder, combination mass flow controller w/20-60 SCFM air flow probe, time indicator, 30` water manometer, filter media holder/filter paper cartridge, (8 x 10), Complete system.

PUF Poly-Urethane Foam sampler is a complete system designed to simultaneously collect suspended airborne particulates as well as trap airborne pesticide vapors at flow rates up to 280 litres per minute. The PUF features the latest in technological advances for accurately measuring airborne particulates and vapors.
