Westenberg Engineering products

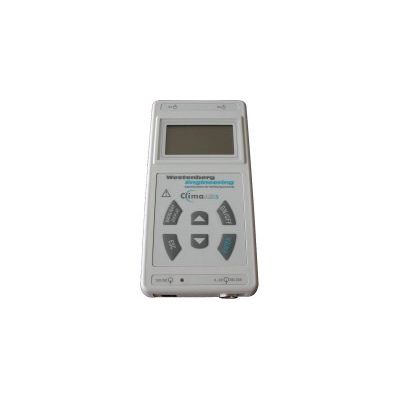

Mobile measurement equipment for over 50 measurement ranges. Attributes: - graphical display. light white LEDs. 4 measurement channels. high exactness 24 Bit Delta-Sigma. automatic detector identification. pipe diameter and prime factor programmable. analog output 12 bit, 0…2 V. serial interface RS 232 with software. can be used with all detectors and vane wheels of the series MiniAir 20. applicable to measure pressure, temperature, flow, flow rate and humidity.

The wind tunnel of the Eiffel-type has an open and no air recirculation. The blower is at the end of the tunnel in an outflow diffusor. In this procedure, the flow guidance happens by means of a smoothing chamber (with a rectifier and sieves) and a nozzle. This system is connected to a closed section of measurements. The closed section is indispensable as a consequence of the low pressure arising due the structure of the blower.
