White Mountain Process products

Mixers with flange, ferrule or tri-clamp mounts for sanitary environments. Tri-Clamp Sanitary Mixers & Agitators for Closed Vessel Systems.

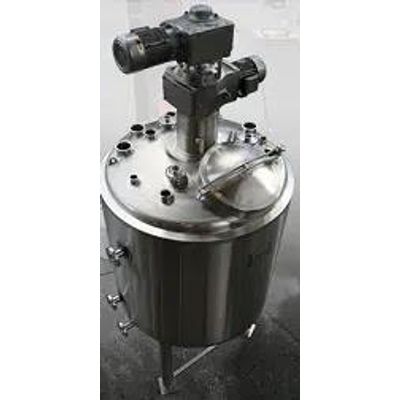

Available in Offset Mount (separate mixer drives) and Concentric Mount (both mixer drives mounted in center) arrangements. Typically, a Dual Shaft high viscosity Agitator or Triple Shaft Mixer is used in blending applications where more than one mixing action is needed. The most common is the anchor slow speed paddle (often a Teflon wall scraper anchor) and a turbine agitator or high shear mixer. Multi agitator mix tanks offer great blending capability for higher viscosity mixtures.

Mag Drive Mixers for sealless mixing and blending. Built to your specifications. 100% leak-proof with no mechanical seals, and zero emissions. Available in sanitary polished/electropolished 316Lss, exotic alloys including: Hast C, Inconnel, Titanium, Alloy 20, AL6XN and others.

White Mountain Process offers a complete assortment of mixers to suit the most stringent specifications. If you need a custom mixing system for your specific lab mixing needs. Many mix tank systems or lab mixers can be modified to suit your application.

Sanitary/Bioprocess Ready & Available With Variable Speed Electric or Air Operated Motors.

We manufacture a variety of open top, hinged lid top and sealed – vapor tight mix tank setups built to your application requirements. Agitated cGMP biopharma ready poly vessels that are sealed (vapor tight and GMP tank design).

Top entry mixers and bottom entry agitators on sealed tanks will have a mechanical seal of some sort. For many sanitary process vessels, the mixer must have some type of sealing barrier to provide either a dust tight vapor seal, a pressure tight seal to allow pressure and or vacuum in the mixtank, or an aseptic sealing device to provide a hygienic seal between the tank id and the outside of the vessel. There are a variety for mixer use, including single dry running double assemblies with a liquid or gas flush, and a variety of other lip seals and packing materials which can be used. Starting with the least expensive sealing mechanism for a rotating mixer or reactor, we have a simple dust cover assembly, and elastomer lips sealed, a spring-loaded CIP mixer seal, a packing seal, a USP class VI lip seal, a single dry running mixer seal, a single with an aseptic debris well, and then we have higher pressure double, custom steam sterilizable and split options.
