WIC Valve products

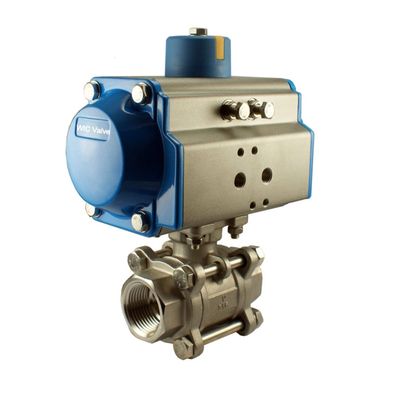

WIC Valve PVS series 1/2″ Inch NPT pneumatic air actuated valve ball valve comes with a stainless steel 3-piece ball valve body, it provides a easy installation and maintenance through the slide out body method. This industrial air actuated valve is used to control the on and off of the valve for media such as air, gas, liquid, water and steam. PVS Series air actuated ball valve can be installed with a Tri-clamp end connections for easy line removal and it is ideal for sanitary applications. PVS series single acting air actuated ball valve use air pressure to open the valve and springs to close the valve. The characteristic of the air actuated ball valve is that it has a higher flow rate, temperature and pressure compare with the direct acting valve. Also it is ideal for the hazardous environments.

WIC Valve PVS series 3/4″ inch NPT pneumatic air actuated valve ball valve comes with a stainless steel 3-piece ball valve body, it provides a easy installation and maintenance through the slide out body method. This industrial air actuated valve is used to control the on and off of the valve for media such as air, gas, liquid, water and steam. PVS Series air actuated ball valve can be installed with a Tri-clamp end connections for easy line removal and it is ideal for sanitary applications. PVS series single acting air actuated ball valve use air pressure to open the valve and springs to close the valve. The characteristic of the air actuated ball valve is that it has a higher flow rate, temperature and pressure compare with the direct acting valve. Also it is ideal for the hazardous environments.

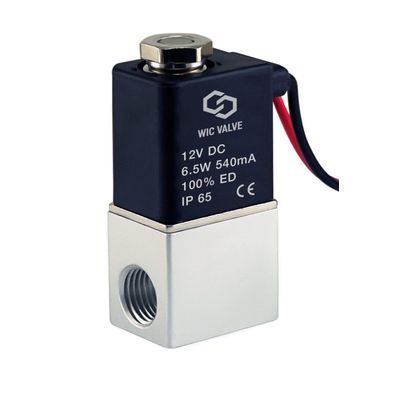

WIC Valve 2ACK series 2-way normally closed electric solenoid valve is to control On/Off of air and inert gas. This direct acting solenoid valve has one 1/8″ inch NPT inlet and one 1/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  Valve has two holes in the bottom and can be mounted in any position.  2ACK series electric solenoid valve comes with a ED 100% coil which suitable to operate in continuous service and constantly energised. This solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required.

WIC Valve 2ACK Series 2-way normally closed electric solenoid valve is to control On/Off of air and inert gas. This direct acting electric solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. This compact fast response valve has two M4 size convenient mountiing holes on the valve bottom for easy installation. 2ACK series valve can be mounted in any position. 2ACK series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2ACK Series is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required.
