Wilcoxon Sensing Technologies products

Reaction-type shaker generates very large dynamic forces to very high frequencies, Can be stud-mounted in any position without external support, Designed to mate with the F4 shaker to extend low-frequency range down to 10 Hz, Manufactured in ISO 9001 facility.

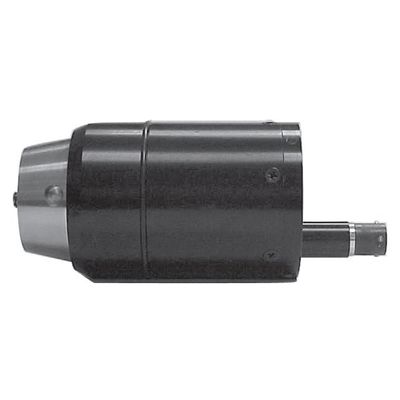

Reaction-type shaker generates very large dynamic forces to very high frequencies, Can be stud-mounted in any position without external support, Manufactured in ISO 9001 facility.

Dual shaker combines high-frequency piezoelectric (F7) and low-frequency electromagnetic (F4) vibration generators to excite entire audio range, Compact, attaches in any position with no external supports, Built-in impedance head, Manufactured in ISO 9001 facility.

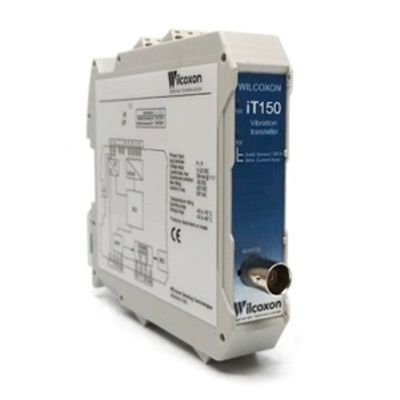

Wilcoxon’s 4-20 mA vibration transmitter module, the iT150, provides an easy means to connect a standard IEPE vibration sensor to a PLC, DCS or SCADA system. The transmitter`s input provides power to and measures the signal from either an accelerometer, piezovelocity sensor or dual (vibration and temperature) output sensor. The input circuitry has a wide frequency response, capable of measuring signals between 0.2 Hz and 20,000 Hz, as well as a True Peak detection mode out to 25 kHz.

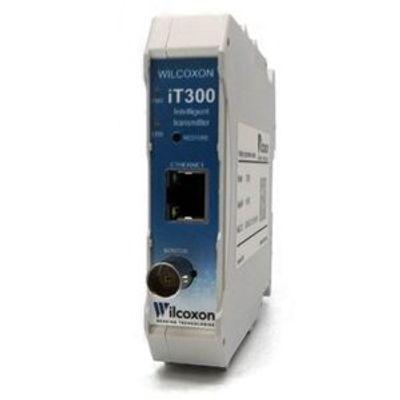

Wilcoxon’s 4-20 mA configurable vibration transmitter module, the iT300, provides an easy means to connect a standard IEPE vibration sensor to a PLC, DCS or SCADA system. The transmitter`s input provides power to and measures the signal from either an accelerometer, piezovelocity sensor or dual (vibration and temperature) output sensor. The input circuitry has a wide frequency response, capable of measuring signals between 0.2 Hz and 20,000 Hz. iT300 provides the user with field-configurable parameters and dual mappable 4-20 mA outputs.
