Wildcat Technologies products

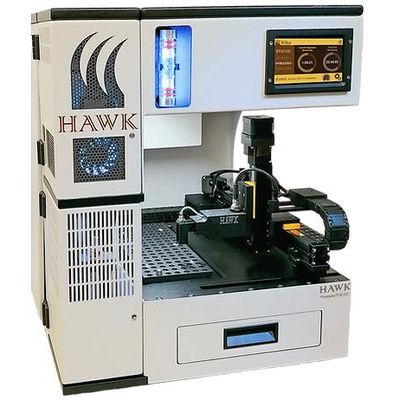

State of the art equipment that brings precision and accuracy to your rock analysis. This instrument analyzes rock samples (core, cuttings and outcrops) to determine the Total Organic Carbon (TOC), oil (S1), hydrocarbons yield from pyrolysis of kerogen (S2), pyrolysis measurements of both CO and CO2 (S3CO and S3CO2), maturity of the drilled depths (Tmax), and non-generating organic carbon content as determined from the oxidation cycle`s CO and CO2 (S4CO and S4CO2).  The HAWK Instrument also determines carbonate content by measure the CO2 content that is derived from the breakdown of carbonates (S3CO`, S3CO2` and S5).

With HAWK-GC Pyrolysis instrument analyze drill cuttings and quantitate as much of the light hydrocarbons as possible.

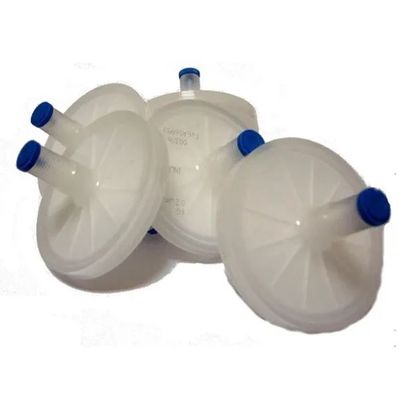

Split / IR In-line filter for the HAWK Instrument.

Split / MFC filter for the HAWK Instrument.  These filters became the standard on HAWK SN: 2052+. If you have an earlier instrument, please review the Filter Upgrade option here or contact us to discuss options as there are several different filter configurations on the HAWK Instrument.

The filter upgrade kit includes the new mounting bracket and 4 ea of new filters.

Female connector hose barb (33mm filter) for HAWK Instrument filter (33mm).

Male connector with lock ring (33mm filter).

Split filter (33mm) for the HAWK Instrument. This item is discontinued as an additional filter for the HAWK Instrument - please see the Filter Upgrade option here or contact us to discuss options as there are several different filter configurations on the HAWK Instrument.  This was replaced by Split / MFC In-line filter.

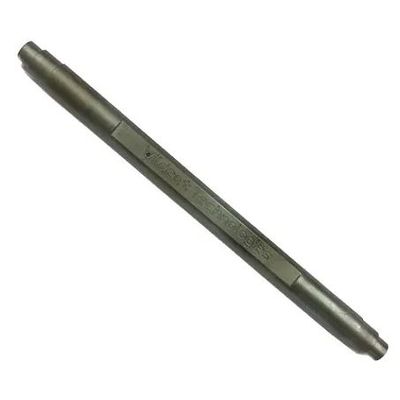

Crucible screen insertion tool for HAWK Pyrolysis instrument crucibles.  Crucible screens are recommended to be changed annually or sooner depending on amount and type of samples analyzed.

Flow controller - FID Air with fittings.
