Wipotec-OCS GmbH products

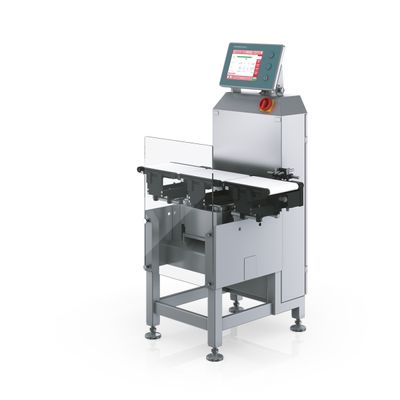

Reliability and transparency of production data are the basis of all planning. The EC-E checkweigher from Wipotec guarantees 100% data capture in ongoing production. Capable of 150 weight values per minute, the EC-E is the right choice for you. The intuitive user interface ensures convenient operation via a clearly structured, 8-inch colour touchscreen. The EC-E checkweigher precisely weighs each individual product, records individual values, and ejects incorrect weight packages via the fully automated sorter. Your data is correctly and completely collected and you have the certainty that only factory compliant products leave your production halls. The checkweighers ease of use virtually excludes all incorrect entries

The dynamic checkweighers of the HC-M series provide the perfect weighing technology for challenging medium range checkweighing applications. They are the link to the series EC-E and HC-A scales and provide up to 250 weight values per minute for the complete medium range.

The SC-E is the perfect entry to the world of ultra-modern X-ray inspection systems and the associated high quality product line of Wipotec. Designed and developed to meet the most stringent requirements of foreign body detection, with an optional comprehensive software package, the scanner becomes an excellent all-rounders that reliably performs count, completeness, fill-level checks, and mass determination. The SC-E X-ray inspection series is more than a good investment for all users who are looking for highly professional foreign body detection. It represents a well-engineered, technically advanced, and economical solution at a highly competitive price.

The SC 20 "Mini" complements the already globally successful (due to its modular philosophy) SC product family. The outstanding feature of the SC 20 is its extremely compact design. On a total system length of 700 mm, the products are inspected and safely discharged from the product stream. All software tools known from the SC family are used. The scope of performance of this network-enabled scanner includes foreign body detection, quantity, shape, completeness, and fill level control. The scanning process continuously documented. The X-ray inspection system SC 20 “Mini” reliably achieves outstanding inspection results at high product throughputs of up to 400 pieces/min - with the lowest false reject rates.

The globally successful SC product line meets the highest standards of modern quality management. Nothingis left to chance in terms of process safety and hygienic design. A high performance camera detector equippedwith HD-TDI technology ensures high resolution and sharp X-ray images, while providing the optimal basis forthe image processing software developed at Wipotec. The minimal faulty rejection rate combines with the maximal detection accuracy to provide the greatest possible safety. All of the X-ray inspection systems from Wipotec have the same familiar and convenient user interface found in the checkweigher line. Designed for protection class IP65 with full stainless steel construction, the system features a balcony design and sloped surfaces that, together with the C-shaped and weldless product chamber, enable thorough cleaning quickly and easily.

The SC-B 30 X-ray inspection system is the ideal entry point for the quality X-ray inspection of incoming raw material. Foreign body detection at the beginning of the production process leads to optimization of the line efficiency by reducing product losses and downtimes. In contrast to the end-of-line check, contamination is removed before processing, thus reducing the number of products ejected. Large foreign bodies, such as metal parts, can damage machines and may be split into many small, undetectable fragments. X-ray inspection at the beginning and end of the production line supports monitoring of the production process. Foreign bodies, which appear at the end of the line, are frequently the cause of damage to production machines. Once the source of the foreign body has been found, it is possible to initiate repairs or the procurement of spare parts at an early stage.

Scales of the HC-SL series are designed for products up to a maximum 60 kg. The high weighing accuracy (up to 5 g) permits speeds of up to 2.9 m/s in calibrated mode. These excellent values are achieved by the sandwich construction which creates a rigid platform for the parcel to travel over the scale weigh bridge. It also ensures a noise reduction to below 65 dB.
