Wiscon Envirotech Inc. products

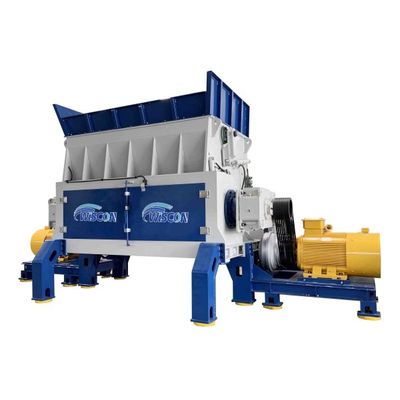

Industrial Shredder - Single Shaft Shredder

One shaft. Small footprint. Process Wood and Plastics. Used in material waste recycling smaller than 1500mm. Applications Plastic: Plastic lump, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle Wood: industrial waste paper, wood pallet Scrap Metal: circuit board, aluminum material, copper material, wire, cable Introduction P series single shaft shredder is used in small-to-medium material size reducing and waste recycling in various industries. Being the smallest single shaft shredder in our product line, it mainly handles plastic lumps and products, wood, paper wastes to obtain uniform particle size. Features low speed, high torque and compact structure. In a harsh environment, shredder machines can maintain good stability and reliability. Wiscon’s unique screen and 4 types of shredder rotor can be selected according to material characteristics. https://www.wiscon-tech.com/

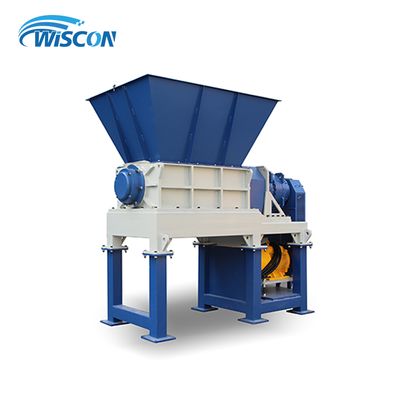

Wiscon Envirotech - Double Shaft Shredder

DS Series shredder can handle a wide range of solid waste. Compared to single shaft shredder, this series has lower speed, higher torque, and higher efficiency. It excels in size reducing industrial waste, MSW, electronic waste, waste household appliances and other mixed wastes. Its structure is relatively compact and maintenance-friendly with a maintenance door that provides full access to crushing chamber and bearing housing. Because double shaft shredder is screenless, it is often used as primary shredding, and its shredded particle size depends on the blade thickness. https://www.wiscon-tech.com/

Wiscon Envirotech - Plastic Granulator

Ensures smooth size reduction of plastic and rubbery products, such as PP, PE, PET, PVC in all sizes. The plastic crusher is usually used as secondary shredding due to its high rotational speed and sharp blades. Featuring robust welded steel construction and stable operation, but during crushing, metal and similar hard foreign objects are not allowed to be disposed of into crushing chamber. 4 rotors are tailored for versatile applications and producing uniform regrind, whose size is determined by screen opening. The crushing machine offers 2 types of rotor: one for soft plastics and the other for hard plastics. The resulting regrind can be pneumatically conveyed and collected, forming a simple recycling system with no dust and reduced labour cost. https://www.wiscon-tech.com/

Wiscon Envirotech - Heavy Duty Shredder

T series single shaft shredder is suitable for processing bulky and high hardness materials. With strong welded steel construction, sloping pusher and extra-large internal volume, higher throughput and more stable processing of big shredder can be achieved. The sloping pusher and large interior with access door make maintenance quicker and easier. Wiscon’s 4 unique rotor configurations enable an increase in industrial shredder throughput by 20%. Plastic: Plastic lump, plastic pipe, plastic sheet, PE film, PP woven bag, PET bottle, plastic pallet Wood: industrial waste paper, wood pallet Scrap Metal: circuit board, aluminum material, copper material, wire, cable https://www.wiscon-tech.com/

Wiscon Envirotech - Shredder-crusher Combined

Machine Intro CT series is a combination of shredder and crusher in a single unit. Shredder-Crusher Combined processes input material like purgings and bulky objects to the desired granule size in two stages. From lumps to 40mm shredded particles, to 10mm regrind, our proven size reduction technology produces uniform regrind that is immediately ready for reuse. Without a conveyor between shredder and crusher, the compact design saves up to 65% space for your factory. The integrated shredder and crusher with Smart Control guarantee energy-saving and continuous operation. Shredder-Crusher Combined Features • Space-saving and investment-minimized, compared to the individual shredder, granulator and conveyor. • One-step size reduction to desired final output size. • Slanted pusher ram ensures continuous operation & eliminates residual materials. • Auto-reverse system re-orients shredder rotor’s direction when motor overload and material jam. https://www.wiscon-tech.com/

Wiscon Envirotech - Frition Washer

Applications Highly contaminated materials such as plastic flakes and plastic films. Contaminants include paper and plastic labels, dirt, sands, and grease. Introduction Friction washer for plastic is to clean contaminated materials coming from a granulator. The working principle is based on mechanical friction and centrifugal force, just like a laundry machine. Get Away the Dirt Small footprint. Effectively remove persistent contaminants from plastics. https://www.wiscon-tech.com/

Wiscon Envirotech - Pre-shredder

Introduction Pre-shredder is composed of large diameter rotor, large size tooth and high torque motor. Other than featuring rotor and tooth, the low-speed rotor is mainly suitable for handling bulky and non-homogeneous materials such as agricultural films, woven bags and textiles in rolls or bales. Pre-shredder is allowed to handle contaminated materials with a high percentage of metal parts or sands. However, the size of the output materials is about palm size. Thus, pre-crusher is generally used as a preliminary size reduction or primary treatment.

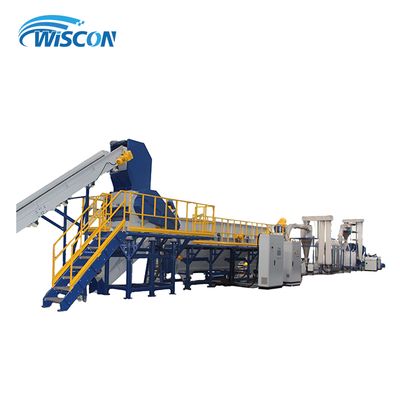

Wiscon Envirotech - Recycling System and Washing Line

The plastic recycling system starts with size reduction. An industrial wet shredder with a special rotor and screen efficiently enhances shredding throughput. The chance of winding rotor or motor overload is eliminated by Smart Control. Plastic recycling equipment ensures a consistent output of partially washed shredded particles. Following several friction washers and sink-float tanks, the floating plastics are washed and remained, but the sinking unwanted and contaminant are automatically transported out of the system. If your materials are highly contaminated, our modular design of washing technology simplifies the design and integration. The shredded particles further break down in a wet crusher, where uniform 10-12mm regrinds are obtained. In the end, the regrind is ready to dry in a centrifugal dryer and then collected in a cyclone. https://www.wiscon-tech.com/

Shredder

Wiscon - Quad Shaft Shredder

Quad shaft shredder(4 shaft shredder) is more advanced than two shaft shredder. Four-shaft shredder is suitable for a variety of bulky objects with unique advantages of uniform size control. The differential speed among 4 rotors create a great benefit in case of overloading and jam.

Wiscon - Solid Waste Shredder

This heavy-duty industrial waste shredder is infused with Wiscon’s most reliable shredding technologies. With unique designs to rotor, chamber and control system, you are sure to enjoy high capacity and fine size control. For downsizing commercial and industrial waste, this solid waste shredder produces up to 15 tons per hour with a particle size of 40-60mm. There is only one purpose of M series: to tackle all challenges in size reduction.
