Workstrings International, LLc products

Landing String System

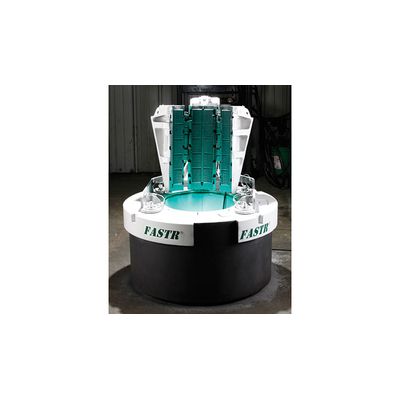

Deeper Deepwater Drilling with Workstrings’ FASTR® System. The FASTR® System consists of a 6 5/8-inch FH Slip-Proof® Landing String design that features a 6-foot Slip-Proof® div which prevents the crushing of the tubular by the FASTR® Slip System. The V-150 grade FASTR® Landing String is rated to 2.0 MM lbs, with the UD-165 grade rated to 2.5 MM lbs. The specially designed box taper provides increased elevator hoisting capacity for use with a 1,000-ton or 1,250-ton elevator.

Tubular

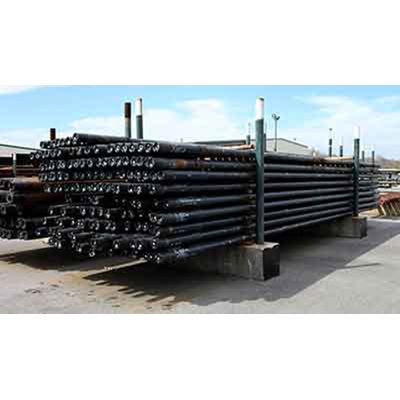

Drill Pipe

Drill pipe is the top component of any drill string that makes up the majority of a drill string`s length. Its functions are to transmit torque and power from the top drive or rotary table to the bit. A drill pipe is described by its size, weight, grade, connection, upset, range and class.Workstrings International maintains an inventory of drill pipe from 2 3/8-inch to 7 5/8-inch in various grades,– from 105ksi to 165ksi material yield strength and various wall thicknesses to design the optimum drill string.

Landing String

Landing string is heavy wall drill pipe (approximately 0.500-inch wall or greater) used where regular drill pipe does not have sufficient tensile strength. Manufactured from high grades of steel as drill pipe, the increased tensile rating directly correlates to the wall thickness. The most common application for landing string is to enable running long, heavy casing strings used in subsea and deepwater wells. Workstrings International has the largest inventory of rental landing strings in the industry that can meet the design criteria of challenging projects globally

Pipe Handling Tool Rentals

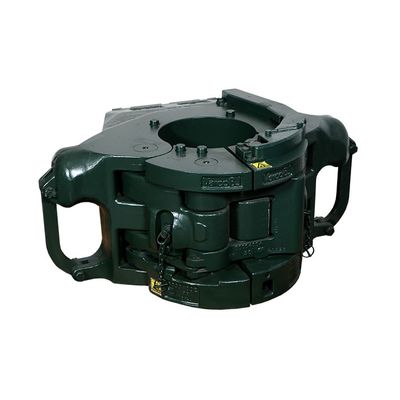

Elevators

A hinged mechanism that may be closed around drill pipe or other drillstring components to facilitate lowering into the wellbore or lifting out of the wellbore. In the closed position, the elevator arms are latched together to form a load-bearing ring around the component. A shoulder or taper on the component to be lifted is larger in size than the inside diameter of the closed elevator.

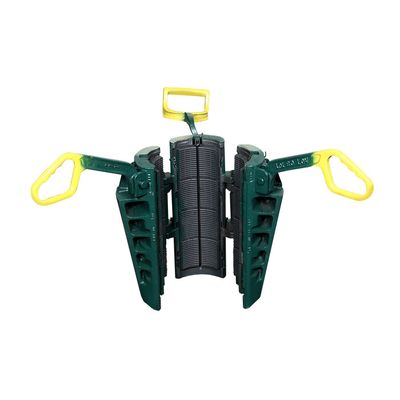

Rotary Slips

Rotary Slips consist of segments containing inserts that fit around the drill pipe and grip so the pipe does not move down hole. The Rotary Slip is designed to sit inside an insert bowl in the rotary table and apply even pressure around the joint of drill pipe. This allows the operators to stab the next joint or stand of drill pipe into the box of the joint of pipe being held in place by the slips.
