19 products found

Products

  • SideHill Screen (SHS)

    SideHill Screen (SHS)

    The SideHill Screen (SHS) is ideally suited for process and wastewater streams containing solids, which are easily separated from the liquid and will slide easily.

  • Integrated Fixed Film Activated Sludge (IFAS)

    Integrated Fixed Film Activated Sludge (IFAS)

    Integrated Fixed Film Activated Sludge (IFAS) process is a state-of-the-art biological process used in treatment of municipal and industrial wastewaters for BOD removal, nitrification and denitrification. The process is a hybrid of suspended growth and fixed-film (attached growth) process and may be viewed as a combination of Activated Sludge and MBBR process. It is...

  • www/NIKUNI PUMPS

    www/NIKUNI PUMPS

    The NIKUNI Pump generates highly saturated dissolved air efficiently and reliably in clean and dirty water fed streams. The many benefits typically provide 2-9 month project justifications. The innovative design uses three types of forces to generate high pressure in a single pass. A symmetrical blade design on either side of the impeller generates three forces. A friction force pushes the liquid in the direction of rotation. A centrifugal force...

  • www/PRE-SCREENING

    www/PRE-SCREENING

    World Water Works manufactures a wide range of screening equipment. The typical application for these systems is pre-screening of process or wastewater streams to remove large particles to protect downstream equipment. World Water Works offers three (3) different technologies: the Sidehill Screen (SHS), Externally-fed Rotary Screen (ERS), and Internally-fed Rotary Screen (IRS - as shown in above pictures). Each of these offers different advantages,...

  • www/ANCILLARY - THE TOWER PURE

    www/ANCILLARY - THE TOWER PURE

    The TOWER PURE system is an Automated Packed Bed Multi-Media Filter providing efficient removal of 95+% metal ions and bacteria. A proprietary blend of filter media provides the most cost effective and efficient means to achieve metals removal requirements, biological removal and chlorine removal. The unit is designed with an automated backwashing system. The effluent from this system is often reusable in many areas of plant's process. Adsorption...

  • CHEMICAL FEED SYSTEMS

    CHEMICAL FEED SYSTEMS

    World Water Works manufactures a coagulant and flocculant makedown feed system. The coagulant feed system is complete with an automatic simply dilution system to assure optimum chemical blending. The flocculant makedown and feed system is equipped with WWW’s Birdfeeder system which provide assured supply of the polymer to the chemical feed pump. These systems are automated and adjust based upon the feed flow of the wastewater stream.

  • EQ TANKS

    EQ TANKS

    World Water Works’ Equalization Tank design provides normalization of flow and consistency and provides a place for control of pH. WWW typically designs its equalization tanks with a minimum storage capacity of four (4) hours and as much as twenty-four (24) hours depending upon the wastewater characteristics of the plant. Fiberglass tanks are the preferred material of construction for purposes of longevity and flexibility in treatment. World...

  • pH CONTROL SYSTEMS

    pH CONTROL SYSTEMS

    World Water Works manufactures a PH control system, which includes two separate chemical pump shelves for each of the (2) chemical feed pumps. In addition, WWW has developed an Easy Access Probe and Sample Port Assembly providing protection of the pH probe, an easy calibration point, and sample point.

  • SLUDGE TANKS

    SLUDGE TANKS

    World Water Works’ Sludge Tank design provides decant capabilities and storage for sludge prior to hauling or dewatering. Cone bottom fiberglass tanks are the preferred material of construction for purposes of longevity and are used for tank capacities under 10,000 gallons. For tanks greater than 10,000 gallons in capacity, World Water Works specifies flat bottom, epoxy coated, bolt-together steel tanks with the ability to blow air into the...

  • www/DEWATERING SYSTEMS

    www/DEWATERING SYSTEMS

    World Water Works manufactures several different dewatering technologies. Depending upon the type of sludge, quantity, oils and grease content, and the desired dryness, one of three different types of dewatering devices will be specified in the equipment list section for optimum performance. The www/Plate and Frame unit provides for consistent maximum cake dryness. The www/Belt Press provides for easy continuous operation and a nonleachable solid. The...

  • www/SOLIDIFIER

    www/SOLIDIFIER

    The www/SOLIDIFIER is a plate frame filter press. This product offers excellent dewatering, simple operation, and years of reliable service. With full automation capabilities, operator time is limited primarily to press set-up, cake removal, and basic housekeeping. Our product range covers overhead, side-bar and specialized filter press designs. Chamber plates are constructed of reinforced polypropylene which are light-weight, high-strength, and...

  • Ceramic Membranes

    Ceramic Membranes

    Over the past several years Membrane Filtration has become a highly effective means of treating and filtering water. However, this technology has not been cost-effective in the wastewater industry until now. Ceramic membranes offer the benefits of tolerance of chemicals and temperatures. This offers the ability to aggressively clean the membranes extending the lifetime of the membranes. The end result is a consistent, easy to operate affordable...

  • Spin-Kleen

    Spin-Kleen

    The Spin-Kleen Filter is a highly efficient automated microfiltration system. The core of the system is a circular polypropylene disc injected molded with slots on the top and bottom. The discs are stacked on top of each other and held in place by a central core tube and capped with a spring-loaded nut. This filtration module is contained in a small vessel. As water enters the vessel, it travels through the slots in the discs and through to the...

  • Screening

    World Water Works manufactures a wide range of screening equipment. The typical application for these systems is pre-screening of process or wastewater streams to remove large particles to protect downstream equipment.

  • Internally-Fed Rotary Screen (IRS)

    Internally-Fed Rotary Screen (IRS)

    The Internally-fed Rotary Screen is designed for versatility and can handle high flows and/or high solids. Typically, the IRS provides the driest solid versus the other www/PRESCREENs. In fact, this system can be used for thickening sludges containing 0.5% - 3% solids to 3% - 15%, depending on the type of sludge. The system operates by feeding the influent into a headbox, which extends 2/3 the length of the drum.The energy is dissipated as the flow is...

  • Externally-Fed Rotary Screen (ERS)

    Externally-Fed Rotary Screen (ERS)

    The Externally-fed Rotary Screen (ERS) is ideally suited for process and wastewater streams containing high fats, oils, and grease loadings. The system operates by feeding the influent into a headbox, which distributes the flow evenly across the full length of the rear, upper external surface of the rotating drum. As water passes through the screen, solids are retained on the outside of the screen drum and are carried by rotation around to the front...

  • Filtration

    Filtration

    Water's value is ever increasing. Water reuse has become economically viable in many instances. World Water Works has developed efficient filtration technology. WWW/media filters are designed to remove specific impurities. World Water Works' ceramic membrane systems can achieve filtration from fine microfiltration to Nano-Filtration levels. The ceramic construction allows for very aggressive cleaning and long-term durability. If it is necessary to...

  • Chemical Control And Feed

    Chemical Control And Feed

    World Water Works manufacturers a full line of chemical feed and makedown systems to provide efficient and optimum chemical application. Many of these systems are designed as 'plug and play' systems. Automatic dilution, drum mixing, calibration, fully installed backups, and automatic dosing are all optional features to these systems. Most parts are non-metallic to provide assured system longevity. Complete PH Control System packages are also...

  • Dewatering

    Dewatering

    The solids that are removed from the wastewater by the above technologies can be further dewatered to reduce transport costs and offer alternative handling options. World Water Works offers several different technologies for this purpose: Belt Press, Plate Press, and Screw Press. Each of these technologies has its specific advantages. A skilled WWW/ application expert will help guide the selection process to best meet the goals of each particular...

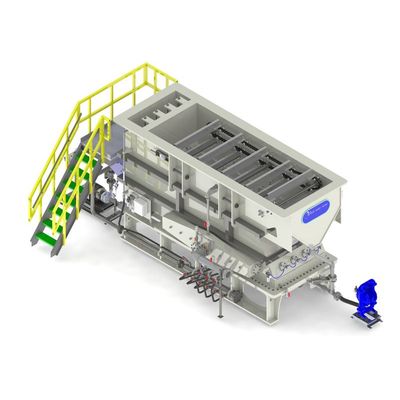

  • Dissolved Air Flotation - DAF

    Dissolved Air Flotation - DAF

    Dissolved Air Flotation (DAF) technology is the process where suspended solids, oils & greases, and other impurities are separated from water slurries by a process of dissolving air into water. Micro-bubbles interact with the particles to cause them to float to the surface of a vessel where they are skimmed and separated.
