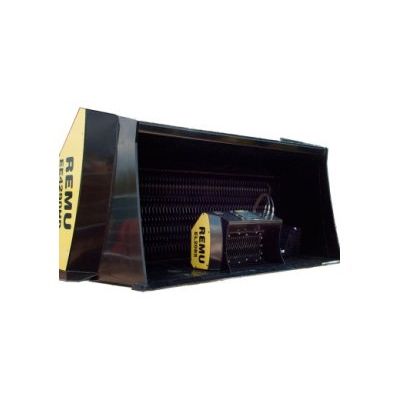

The screening bucket can be fitted to Small Wheeled loaders or Mini Excavators or both using a dual mount system.The EL 2085 has an SAE capacity of 0.18 cubic metres. There are 2 rotators giving a screening area of 0.2 square metres driven by 1 hydraulic motor.The EL2085 is available with a 90 degree and 180 degree spiral blade pattern.Screening sizes vary from 0-8mm, 0-11mm, 0-18mm, 0-27mm and finally 0-41mm.*Flow requirement is 23-60 litres per minute free flow. Max relief setting is 210 BAR – The bucket requires a 2 way circuit to operate and a case drain for the leak back to tank

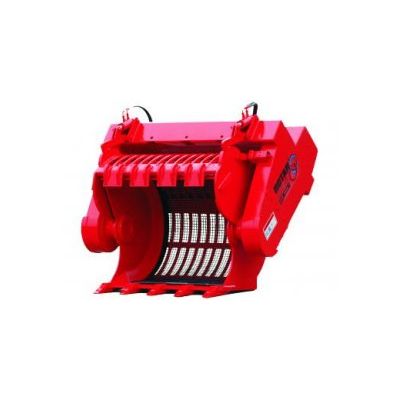

A segregator bucket is a perfect attachment for excavator usuage. Screening and separating was not so easy and productive before.Every machine driver can install this tool on site and start working immediately.This bucket range is maintenance friendly and very popular to demolition, road construction and recycling companies.The segregator bucket is like an ordinary riddle-bucket.Two individually framed bar gratings are powered by a hydraulic motor, via an eccentric shaft, creating a reciprocating motion causing under size materials to exit the bucket through the alternating bar spaces.

The fast working MB-C50 crushing bucket is perfect for the on-site crushing of inert materials even on small sites because it is compact, easy to transport and can crush materials on steep inclines unlike larger crushers.

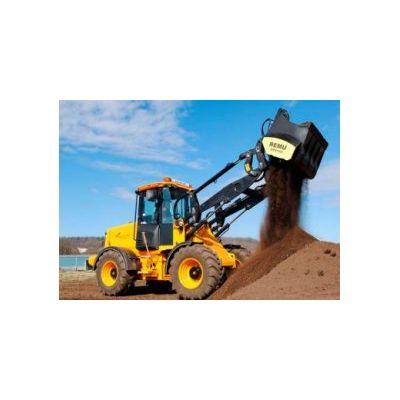

The screening bucket can be fitted to Wheeled loaders or Excavators or both using a dual mount system.The EP 2150 has an SAE capacity of 0.8 cubic metres. There are 2 rotators giving a screening area of 0.8 square metres driven by a choice of 1 hydraulic motor or 2 for the HD.The EP2150 is available with a 90 degree and 180 degree spiral blade pattern.Screening sizes vary from 0-8mm, 0-11mm, 0-13mm, 0-18mm, D-20mm, 0-27mm,0-41mm,0-53mm and finally 0-68mm.Flow requirement is 45-125 litres per minute free flow. Max relief setting is 210 BAR - The bucket requires a 2 way circuit to operate and a case drain for the leak back to tank

The Rotar cleaner is a rotating screening drum, which separates, mixes and cleans various materials in one continuous motion. With the Rotar cleaner, a simple physical principal is translated to a useful attachment for the recycling, demolition and earthmoving industries.A Rotar cleaner can be installed on wheeled loaders, excavators, backhoe loaders etc. Loading and unloading is easy with the Rotar Cleaner By means of a hydraulic cover, the drum can be opened and easily used as a standard digging bucket.During the rotation, the fines fall out of the drum and the bigger sizes stay in. By use of various sizes of changeable screens, different effects can be achieved.With the rolling effect of the material, which stays in the drum, a cleaning reaction is achieved by scouring.
