WSG & Solutions, Inc. products

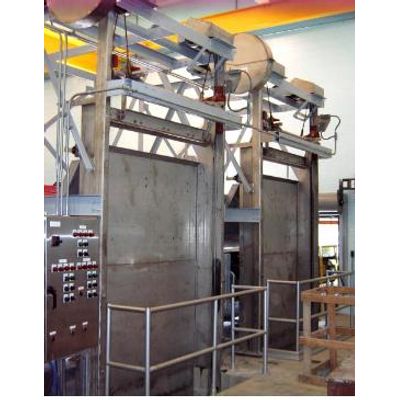

The Dual Stream screen provides debris removal, dewatering and compacting all in one robust, efficient design. This continuous, self-cleaning band screen is available with filter and perforated plate panels. The unique design allows the flow to enter the center of the screen and exit the bottom and two sides of the grid assembly.

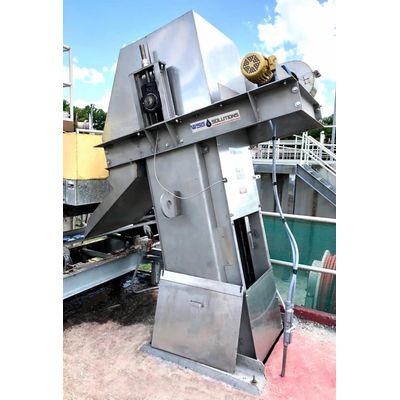

The Link-Belt® 4-Rope Bar Screen is a fixed bar rack, cable type front cleaned screen. As flow passes through the screen, debris is captured against the bar rack. The debris is then removed by the rake teeth that engage into the bar rack to lift debris up to the discharge point where a wiper deposits it into either a sorting tray, compactor, grinder, conveyor or container.

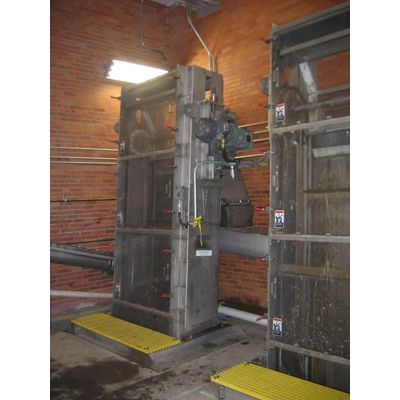

Rugged and reliable, Link-Belt Catenary Bar Screens are commonly used in unattended applications such as CSO control facilities, where the debris loads can be heavy and varied. Sprockets, bearings and shafts are located above the maximum water level, facilitating ease of maintenance and the potential for damage and corrosion. The rakes bear against the face of the bars by the catenary action of the chain. The chains are not guided which means that the rakes can ride over an obstacle without jamming or overloading.

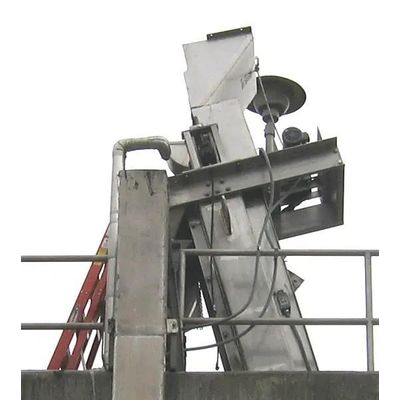

The Guardian® Fine Screen is a self-contained, front cleaned chain and rake bar screen, specifically developed to provide outstanding performance for a wide range of screening requirements. The design includes a stainless-steel frame, high-strength stainless steel bushed roller chain and replaceable non-metallic sprocket tooth segments mounted on stainless steel hubs. Stainless steel carrying rakes include removable tooth segments. The stainless-steel boot design includes a removable bottom mounting plate with integral inlet ramp/bar rack support, designed to capture virtually all channel debris. The simple, low profile, compact head section contains a stainless-steel wiper assembly and heavy-duty ball bearing take-ups. This unique and innovative product, and the design concepts utilized, is the result of over 100 years of screening experience.

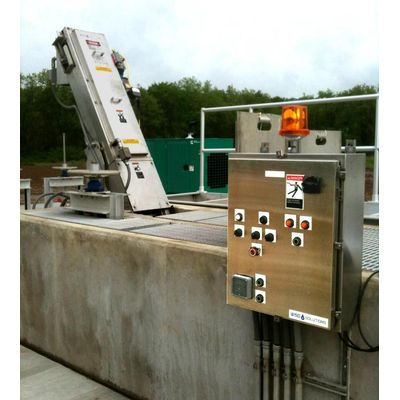

The REX Standard Duty/FR (Front Return) Bar Screen is a self-contained chain and rake type screen. The screen can be supplied with either a fixed mounting, or it can be designed to pivot out of the channel. The debris is captured by the bar rack and removed by multiple rakes from the upstream side of the screen.

The REX Heavy Duty/FR (Front Return) Bar Screen is a self-contained chain and rake type screen. The screen can be supplied with either a fixed mounting, or it can be designed to pivot out of the channel. The debris is captured by the bar rack and removed by multiple rakes from the upstream side of the screen.
