X Membrane products

Hollow fiber MBR Membrane - XMBR- Own Design MBR

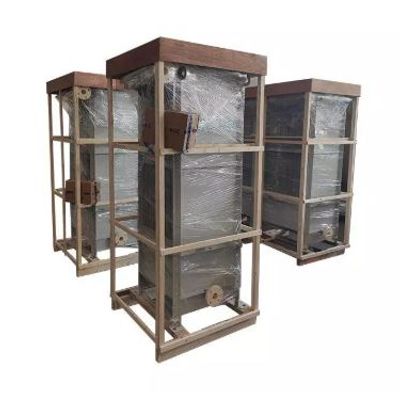

X Membrane - Model XMBR15m2 - 15m2Mbr Membrane Bioreactor Fiber Membrane Mbr System Mbr Wastewater Treatment Plant

Hollow fiber membrane are widely used in membrane bio reactor and shows good performances for mbr wastewater treatment. They are used in MBR STP with MBR SYSTEM in MBR TANK. Membrane filtration has a major role in water and wastewater treatment, which is superior to the conventional water technologies with a proven better performance and more efficient economics.

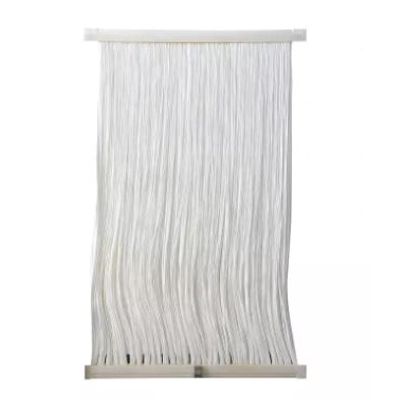

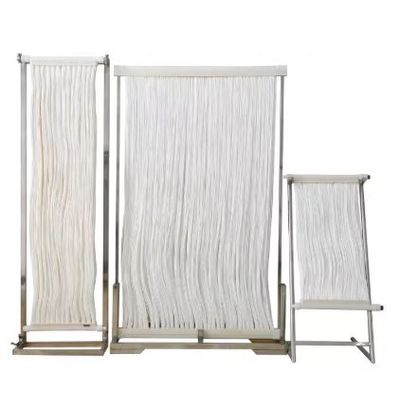

X Membrane - Model XMBR10m2 - 10 square meter Hollow Fiber Membrane With 0.04um Pore Size Good Tensile Strength 500N

The product is focused on hollow fiber membranes suitable for use in membrane bioreactors (MBR) for wastewater treatment. These membranes are highly efficient at separating solids from liquids due to their microfiltration and ultrafiltration capabilities. Constructed from R-PVDF and PET materials, they offer remarkable durability with a pore size ranging from 0.04 to 0.1 micrometers and a tensile strength of 500 Newtons. The membranes support effective flux in the range of 10 to 40 liters per square meter per hour at a design temperature of 25°C. One key advantage of these membranes is their adaptability to varied environmental conditions, with an operating temperature range from 5 to 45°C and a pH tolerance of 1 to 14. They exhibit superior performance for industrial applications such as in food and beverage, petrochemical, and textile industries. The membranes are also suited for municipal water treatment projects, ensuring quality and process control over conventional sewage systems.

Flat MBR Membrane

X Membrane - Model Flat MBR - Membrane PVDF Membrane Element for ETP

The Flat MBR Membrane PVDF Membrane Element for ETP offered by X Membrane is an essential component in wastewater treatment processes, particularly designed for enhanced performance in Effluent Treatment Plants (ETP). This membrane uses polyvinylidene fluoride (PVDF), known for its excellent chemical resistance and durability, making it suitable for harsh wastewater environments. The membrane's robust structure, featuring a supportive ABS backing, ensures efficient filtration with an average membrane pore size of 0.1 microns, which effectively captures suspended solids and microorganisms, providing high-quality effluent. Moreover, the design facilitates easy integration into existing systems, reducing operating expenses by leveraging high mechanical tensile strength and independent operation features. This product is especially beneficial in municipal and industrial applications where wastewater reclamation and reuse are critical operations.

X Membrane - Model XFMBR-Toray TMR100S - Flat MBR Membrane Bioreactor Module

The Toray TMR100S Flat MBR Membrane Bioreactor Module is designed for effective wastewater treatment applications, leveraging polyvinylidene fluoride (PVDF) material that ensures substantial physical strength and chemical resistance. This module facilitates high water permeability with its numerous 0.08 micrometer pores, contributing to high-quality effluent production and resistance to fouling. The flat sheet design offers enhanced fouling resistance compared to hollow fiber configurations and eliminates the need for backwashing, simplifying system operation. Its structural simplicity also aids in easy maintenance, promoting cost savings over time. Each module consists of up to 100 elements covering a total membrane area of 140 square meters, making it suitable for various scales of wastewater treatment facilities. This flexibility meets the needs of engineering firms and end-users across the water treatment industry.

UF Membrane - XUF- Own Design

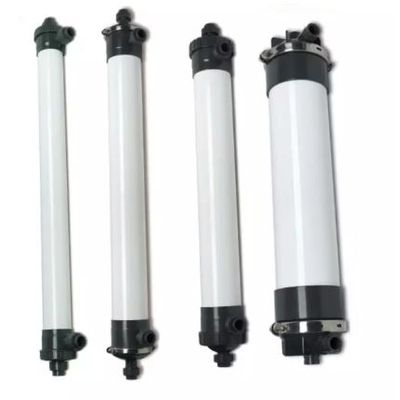

X Membrane - Model UF315 - Customizable UF 90 219 Ultrafiltration Water Treatment Membrane

The customizable UF 90 219 Ultrafiltration Water Treatment Membrane by X Membrane is a specialized solution engineered for the efficient separation and purification processes in water treatment applications. Utilizing advanced hollow fiber ultrafiltration technology, this membrane employs a 0.02-micron filter to effectively distinguish and remove harmful entities such as bacteria, viruses, and various contaminants while allowing clean water and dissolved minerals to permeate. Made from durable macromolecular materials with a specially developed asymmetric semi-permeable membrane, it features a hollow capillary structure with micropores. This design ensures effective physical separation, concentration, and purification, trapping macromolecular substances and colloidal particles outside the membrane. Widely used in industries like food and beverage, mining, and biopharmaceutical pretreatment, these membranes offer low energy consumption, resistance to secondary pollution, and versatile applicability to varying water qualities. Moreover, the system is compact, space-efficient, and simple to operate.
