Xi`an Kacise Optronics Co., Ltd. products

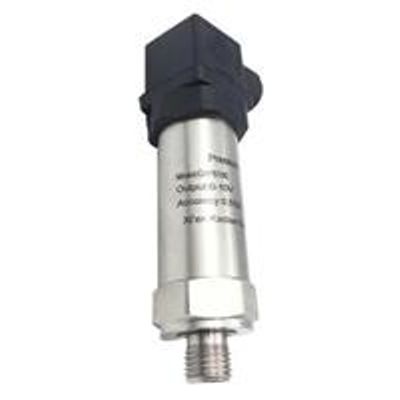

Output Signal: 4~20mA 0.5~4.5V. Power Supply: 10~30Vdc 5Vdc 10~30Vdc. Electrical Performance: 2 Wire System 3 Wire System. Operating Temperature: -40°C~125°C. Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S. Pressure Range: 0~2bar ......600bar. High Light: high accuracy pressure sensor, piezoresistive pressure transmitter.

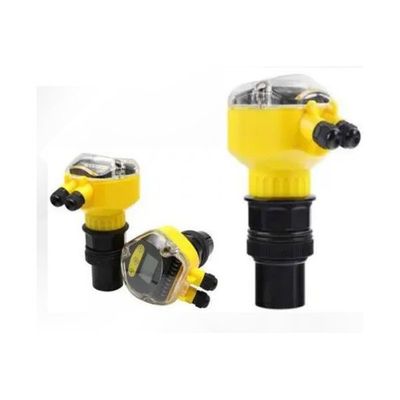

Product Type: Integrated. Power Supply: 24 VDC Optional: 220V AC+15% 50Hz. Display: English Led Display.  Cable Probe: No. Digital Output: RS485. Resolution: 3mm Or 0.1%. Product Name: Digital Integrated Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used In  Municipal Project. Apply: Liquid Solid. High Light: RS485 Ultrasonic Liquid Level Gauge, 24V Oil Level Gauge, Integrated Ultrasonic Level Meter.

Product: Ultrasonic Distance Sensor. Detection Range: 300mm~5000mm. Transducer Frequency: Approx. 220kHz. Output: RS485 + 4-20mA/0-10V. Input Power: 3.3V~24V IP Grade: IP68. Material: PVDF. Type: Waterproof.  Theory: Ultrasonic Sensor. Warranty: 12 Months.
Product Name: PVDF 5m Ultrasonic Water Level Meter. High Light: RS485 Ultrasonic Water Tank Level Meter, 5V Ultrasonic Water Sensor, PVDF Water Level Meter.

Range Range: 0 ~ 14 Ph. Resolution: 0.01 Ph. Precision: ± 0.1 Ph. Operating Temperature: 0 ~ 65 °C.  Working Pressure: < 0.2 Mpa. Temperature Compensation: Automatic Temperature Compensation (NTC). High Light: Double High Impedance Water Quality Sensor, Submerged Online PH Sensor, 0.2mpa Online PH Sensor.

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor. The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe. The KUFS2000C flow meter adopts isolated explosion proof, grade DΙΙBT5 Clamp on sensors are installed on the pipe. After gluing and sealing, grade will be Intrinsically safe explosion. Suitable for pipe sizes from DN32mm to DN6000mm.

Smart pressure transmitter is designed for use in applications which deal with corrosive pressure media. A high sensitivity silicon pressure chip is employed in the sensor. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. It is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.

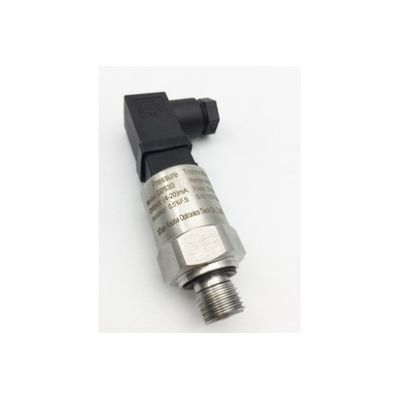

GXPS210 pressure transmitter is the product of a batch, civil and industrial, high cost-effective.  Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases.  High-precision diffused silicon pressure chip for the center of the sensing element, Choose the highly reliable single-chip for signal acquisition and processing of the scene through the LCD display, high performance, reliable quality, high cost performance, small size, light weight, easy to install.

GXPS100 Series pressure transmitter is a high-volume, civil and industrial use, cost-effective products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases. The product uses 1Cr18Ni9Ti stainless steel structure, import the internationally famous brand of diffusion of oil-filled pressure core body, dedicated sensor instrumentation amplifier circuit which can facilitate to calibrate its zero and full scale.

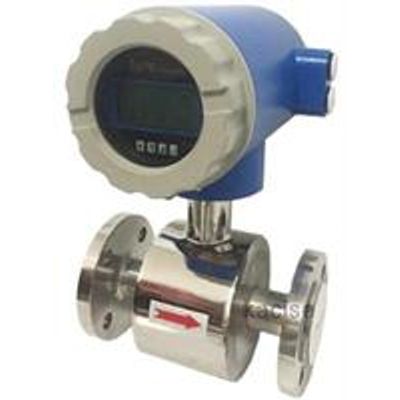

Sanitary type Electromagnetic flow meter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local field bus. Sanitary type Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used Drinking water, soy sauce, jam, beer, fruit juice, rice wine, milk and other food production process and health, chemical and other fields.

IP68 Magnetic Flow meter is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water based. Magnetic flow meters will generally not work with hydrocarbons, distilled water, and many non-aqueous solutions. Magnetic flow meters are also ideal for applications where low-pressure drop and low maintenance are required.
