Xi`an Shaangu Power Co.,Ltd products
Energy Conversion Turbine Unit
Air Separation Compressor
Air separation compressors are widely used in the sectors of air separation plants of large chemical industry and coal chemical industry. Shaangu air separation compressor train serves for the air separation plants from 20,000 Nm³/h to 150,000 Nm³/h. The air separation compressor train are usually design as one air compressor and one compression booster for internal compression process of ASP, while there is only one air compressor designed for external compression process.
Axial Compressor
Shaangu’s axial compressors with market share of 96%. The maximum size of Shaangu axial compressors is AV140.
E Series Horizontal Split Type Centrifugal Compressor
E series of centrifugal compressors are usually used for transportation of air / nature gas / NO / other gas in the fields of petroleum, chemical industry, metallurgical, pharmaceutical and so on. This series of centrifugal compressors are of single-section high-speed, center impeller, horizontal split type structure. This series of centrifugal compressors could be driven by motors through gearboxes or directly driven by high-speed steam turbines and motors.
EB Series Centrifugal Compressor

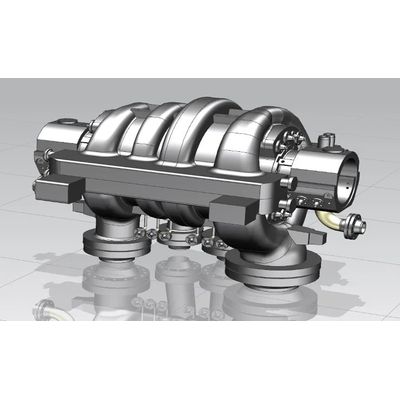

EB series of centrifugal compressors are suitable for the applications of high pressure, toxic, flammable and explosive medium transportation in petrochemical industry generally. Structure of the compressor is of integral barrel type, single-suction, multi-stage, high-speed and double supports. Serialization design, efficient three-dimensional impellers and proper matched model stages realize pressure ratio requirements and high-efficient operation.
EBZ Series Centrifugal Compressor

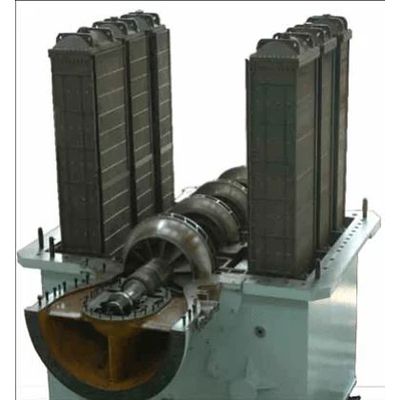

EBZ series of centrifugal compressors are suitable for the applications of air or high pressure, toxic, flammable and explosive gas transportation in petrochemical industry generally. Structure of the compressor is of integral barrel type, multi-suction, multi-stage, high-speed, double supports and built-in intercooler. Serialization design, efficient three-dimensional impellers and proper matched model stages realize pressure ratio requirements and high-efficient operation.
ED Series Centrifugal Compressor
EG Multi-Shaft Centrifugal Compressor

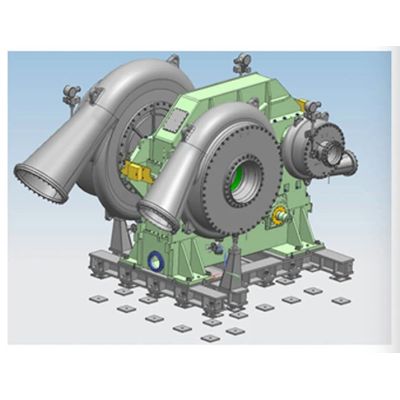

EG multi-shaft centrifugal compressors are mainly used in petroleum industry, chemical industry, metallurgy industry, PTA sector, chemical fertilizer plants and so on, which are usually used as booster of ASP, nitrogen compressor, CO2 compressor, etc. Structure of EG multi-shaft centrifugal compressor is of multi-stage, high-speed, multi-suction, multi-discharge, single-overhang and gas cools stage by stage.The impeller and volute are integrated on multi-shaft gearbox, and driven by motor or high speed steam turbine.
EG Single-Shaft Centrifugal Compressor
EG single-shaft centrifugal compressors are suitable for the applications of air and other chemical gas (circulating gas, synthetic gas, reaction gas, carrier gas,) transportation in petroleum, chemical, metallurgical and other industries. The impeller and volute of EG compressor are integrated at the high-speed gearbox. And the compressor is driven by motor or high speed steam turbine. Serialization design, efficient three-dimensional open or closed impellers, integral casting casing.
