Xian Juneng Instrument Co., LTD products

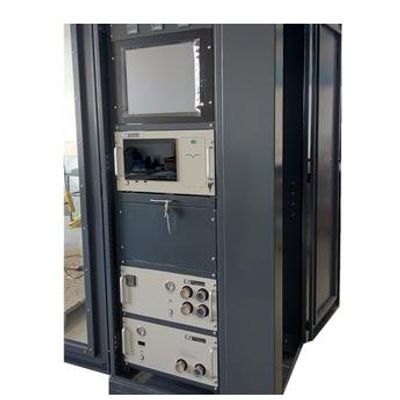

Standard 483mm width 4U height 19 inch cabinet standard chassis, suitable for complete sets of equipment, can also be used in the laboratory. Anti-acid, anti-corrosion sensor, anti-cross interference, advanced digital processing technology.  Service life: more than 5 years.  Linear expression of measurement signal output.  Output of multiple state signals: sound, light, picture, relay, communication information.  Digital temperature compensation.  Full Chinese menu operation (English version of order instructions).

Characteristics: Portable chassis, lightweight and convenient. Anti-corrosion sensor, anti-cross interference, advanced digital processing technology. Service life: more than 5 years. Linear expression of measurement signal output. DC power supply, no other power supply.
Digital temperature compensation. Full Chinese menu operation (English version of order instructions).

For organic waste gases (high moisture content, large concentration, complicated work conditions), use 175℃ high temperature tracing sample transmission for whole process and high temperature FID detector. Use bivalve double column FID online monitor methane and NMHC, use bivalve three column online monitor methane, NMHC and benzene series simultaneously.

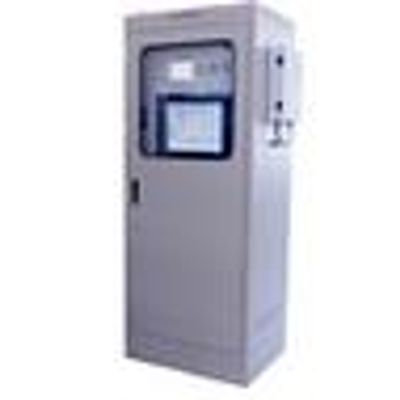

TR-9300 flue gas continuous monitoring system is a combination of on-line analysis technology and China environmental protection monitoring technology, and is elaborately built through our company`s rich experience in the field of industrial process for many years. The system conforms to the environmental protection industry standard HJ / t76-2007 of the people`s Republic of China, and has obtained the environmental protection product certification issued by China Environmental Protection Industry Association. The system is applied to the on-line monitoring of gaseous pollutants (SO2, NOx, Co, CO2, O2) and solid pollutants in flue gas, as well as temperature, pressure, humidity and flow rate. Through the data acquisition and processing system, the atlas and environmental protection reports can be generated, and the data can be transmitted to all levels of environmental protection departments.

Ultra low emission refers to the high efficiency and collaborative removal system technology of various pollutants in the process of power generation operation and terminal treatment of coal-fired boiler in the fire power plant, so that the emission concentration of air pollutants basically conforms to the emission limit of gas unit, namely, the emission concentration of soot, sulfur dioxide and nitrogen oxide (the reference oxygen content is 6%) is not more than 5 mg/m 3, 35 mg/m 3, 50 mg/m 3, respectively Mg/m 3, which is 50%, 30% and 50% lower than the special emission limit of key areas of coal fired boilers specified in the emission standard for air pollutants of thermal power plants (gb13223-2011), is a new benchmark for clean production level of coal-fired power generating units.

The flue gas is extracted from the flue by a special heating sampling probe and transmitted to the pretreatment system of the flue gas analysis cabinet through an electric tracing tube (120-160 C). The flue gas is dedusted, dewatered, stabilized and distributed to SO2, NOX, CO, CO2, O2 analyzer for analysis after the temperature flow.

TR- 9200 gas analysis system mainly includes: converter gas recovery, blast furnace coal injection process, blast furnace gas, converter gas, coke oven gas, producer gas, semi-water gas, CDQ circulating gas, biomass gas and industrial gas cabinet front / back / top gas composition analysis system, and non-ferrous metal smelting furnace gas analysis system.

TR-9100 system is a professionally designed safety interlocking equipment of gas component analysis for the cement plant safely operation. According to the poor working conditions in cement plant, using the advanced analysis controlling and sampling preprocessing technology by Juneng make the professional solutions based on a specific design. Specially using the advanced, less maintained sampling probe is better for the poor working conditions with heavy dust of cement plant.

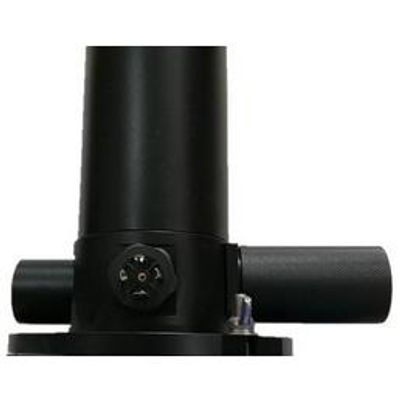

The JNYQ-O- 15 laser analyzer adopts the principle of tunable laser absorption spectroscopy ((Tunable Diode Laser Absorption Spectroscopy, referred to as TDLAS), which can measure the concentration of specific gases in the process gas composition, including CO, CO2, O2, H2S, HCL, HF and so on. The system has the characteristics of high sensitivity, fast response, no interference from background gas, non-contact optical measurement and so on.

High resolution, suitable for low concentration emission and high concentration emission monitoring. Single arm installation, no need for light, easy installation and maintenance. Strong anti-interference. Standard 4-20mA industrial standard current output is adopted, which is convenient for connection. The overall power consumption of the instrument is about 5W.
