Xtralis products

The VESDA-E VEP series of smoke detectors bring the latest and most advanced detection technology to provide very early warning and the best nuisance alarm rejection to a wide range of applications. Built on the Flair detection technology and years of application experience, VEP detectors achieve consistent performance over their lifetime via absolute calibration. In addition, the VEP delivers a range of revolutionary features that provide user value. Model Nos. VEP-A00-1P, VEP-A00-P, VEP-A10-P, VEP-A00-1P-UL, VEP-A00-P-UL, VEP-A10-P-UL.

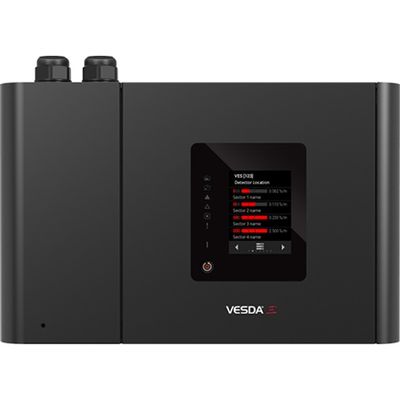

The VESDA-E VES can identify and monitor smoke density by individual sampling pipe (sector) which allows a single zone to be divided into four separate sectors; for example, distinguishing between separate aisles within a data room. Sector addressability enables the user to respond to a potential fire event quickly by reducing the search area. The VESDA-E VES has four programable alarm thresholds (Alert, Action, Fire 1 and Fire 2) per pipe that allows flexible field application. After the detector identifies the first sector to reach the Alert threshold it continues to sample from all sectors to report real time status per sector via the intuitive touch screen display. Built on the Flair detection technology and years of application experience the VESDA-E VES detector delivers very early warning with the best in class dust rejection throughout its lifetime. Model Nos. VES-A00-P, VES-A10-P, VES-A00-P-UL, VES-A10-P-UL.

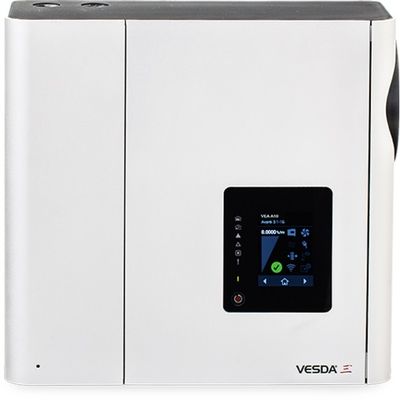

Managing multiple smoke detectors in large, busy buildings such as hospitals, prisons, or hotels, can be a challenge. Testing and maintaining smoke detectors in such settings, especially those with restricted areas, can be time consuming and disrupt critical operations. Xtralis VESDA-E VEA Addressable Aspirating Smoke Detection combines assured detection with the unique value of centralized test and maintenance reducing the time, cost and impact of ongoing upkeep. Model Nos. VEA-040-A00, VEA-040-A10, VEA-040-A00-UL, VEA-040-A10-UL.

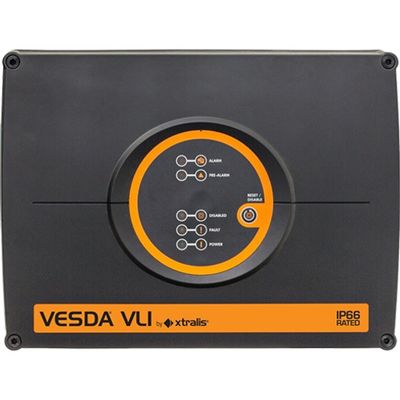

The VESDA VLI is an industry first early warning aspirating smoke detection (ASD) system, designed to protect industrial applications and harsh environments of up to 2000 m2 (21,520 sq. ft.). The VLI detector combines a fail-safe Intelligent Filter (patent pending) with an advanced clean-air barrier for optics protection allowing the use of absolute detection and a long detection chamber life without the need for re-calibration. Model Nos. VLI-880, VLI-885.

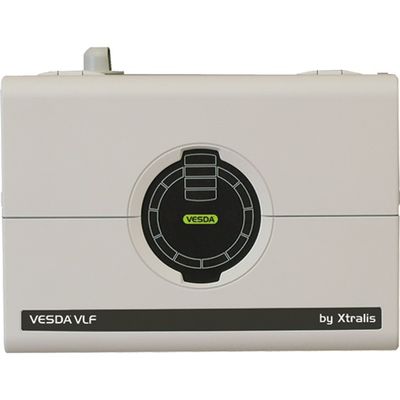

The VESDA VLF by Xtralis is an aspirating smoke detector ideal for small, business-critical spaces. Available in two models, the VLF-250 covers up to 250 m2 (2,690 sq. ft.), and the VLF-500 covers areas up to 500 m2 (5,380 sq. ft.). Model Nos. VLF-250, VLF-500, VLF-500-00-UL.

Open-area Smoke Imaging Detection (OSID) provides projected beam smoke detection technology. By using advanced dual wavelength projected beams and optical imaging technology for early warning smoke detection, OSID provides a low-cost, reliable and easy-to-install solution that overcomes typical beam detection issues such as false alarm incidents and alignment difficulties. Model Nos. OSI-10, OSI-90, OSE-SP, OSE-SPW, OSE-HPW, OSE-HP-01.
