Piston compressor is a kind of piston reciprocating motion to make gas pressurization and gas delivery compressor mainly consists of working chamber, transmission parts, body and auxiliary parts. The working chamber is directly used to compress the gas, the piston is driven by the piston rod in the cylinder for reciprocating motion, the volume of the working chamber on both sides of the piston changes in turn, the volume decreases on one side of the gas due to the pressure increase through the valve discharge, the volume increases on one side due to the reduction of air pressure through the valve to absorb the gas. We have various of gas compressor, such as Hydrogen compressor, Nitrogen compressor, Natrual gas compressor, Biogas compressor, Ammonia compressor, LPG compressor, CNG compressor, Mix gas compressor and so on.

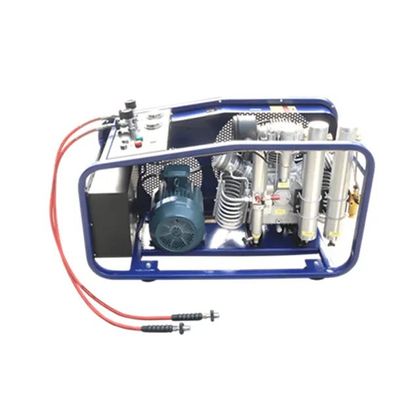

Main parameters: Model: HY-W400, Work pressure: 30Mpa Mpa(300bar),Displacement (inhalation state): 400L/min  ,Type: W-type layout-three-cylinder three-stage reciprocating piston compression, Drive: Electric 380V/50Hz/7.5kw or Honda gasoline engine drive,Lubrication method: Splash lubrication (food grade lubricant 750-H2), Cooling method: air cooling, Control method: Automatic shutdown, Clean air: Primary air filtration, secondary oil-water separation, secondary classification air purification, Safety devices: Interval safety valve, pressure maintenance valve, automatic shutdown system, transmission part installation protective cover, Packing size (length×width×height): 125×70×92cm, Weight: 220kg, Inflation speed: It takes about 5.5 minutes to fill a 6-liter bottle with 30Mpa
