Zeta Alarms Limited products

The ZIS-FLD flame detector is designed for detection and signalisation of a flame ignition in case of a re hazard. The ZIS-FLD flame detector is intrinsically safe (IS) to be used in explosion hazard areas. It operates in detection lines connected to Zeta re alarm system control panels with an appropriate spark proof separator. The ZIS-FLD detector is designed for conventional use.

The ZIS-PHD heat (temperature) detector is designed to detect a fire hazard in rooms, where during the first phase of a fire a rapid rise of temperature may occur, or where temperature may exceed a defined danger level.

The ZT-CP3 and ZT-CP3/WP call points are unique in that they mimic the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element. The CP3 uses a simple yet ingenius patented mechanism which consists of a rigid plastic operating element and an over centre spring mechanism. This arrangement provides real action on operation and simulates break glass activation. An activation indicator drops into view at the top of the window after the CP3 has been operated. The unit is then simply reset with a key and is ready for re-use straight away. A special Polycarbonate cover (CP3-CV) is available for extra protection against accidental activation and thus allowing the unit to operate as a double action call point. This must be ordered seperately.

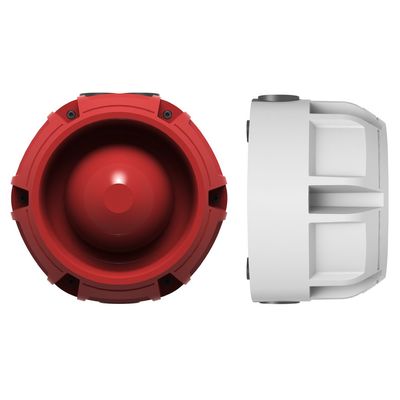

The Raptor conventional sounder is a large weatherproof horn sounder suitable for many indoor & outdoor applications. It is available in red or white and has selection of 22 tones. Termination of field wiring is made to the backbox for a clean first fix.

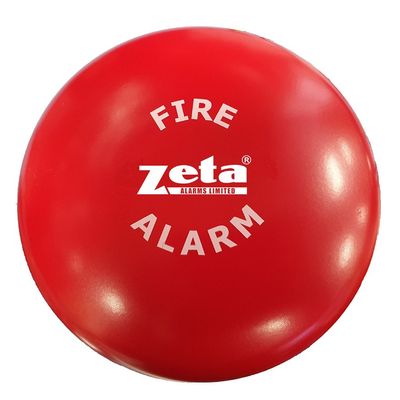

Zeta introduces a new 6 “ bell with a modern construction including an aluminium gong with high db output and a moderate current consumption. The new ZT-BELL/6 is available in both indoor and outdoor versions with very stylish termination box to allow access to back box without using special tools. This new range with its output replaces the need for 8” bell. Availble with Shallow, Deep or Weatherproof Base.

The Premier M Plus control panels are designed to fulfil the requirements of EN54 parts 2 & 4 as well as being easy to install, operate and maintain. Being of modular construction, the basic M Plus panel has 8 zone capacity, expandable to 16, 20 and 24 zones. The Premier M Plus is suitable for surface mounting or semi-flush mounting (with just the door protruding).

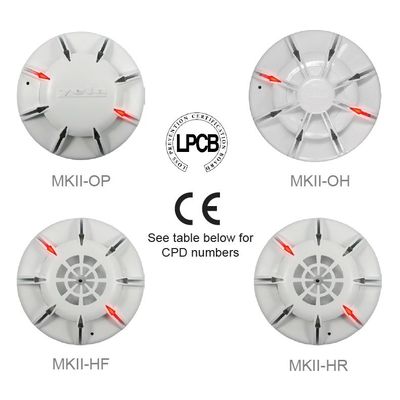

The Fyreye MKII optical smoke detectors use a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber. The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm). The Fyreye Rate of Rise heat detectors (MKII-HR) use a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C. The Fyreye fixed heat detector (MKII-HF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C. There are 4 types of mounting base available; standard or deep and with or without diode.

There are two models for the Conventional Remote LED Indicator, a wall type MKII-RL/W and ceiling mounted type (requires a base) MKII-RL/C. Each unit has 2 LEDs that light up to indicate an alarm. It has the 8 LED appearance to keep it’s family identity. The MKII-RL/W is supplied with a backbox for surface mounting. It is also available without backbox for flush mounting.

Ideal for routine maintenance, the sensitivity of each MKII smoke detector can be checked and recorded.
