ZH-Pipeline Construction products

The Pay Welder for Pipeline Construction is a multifunctional carrying equipment, which is mainly used to carry a self-powered fully automatic welding machine set or generator set, and can also carry other equipment. The Pay Welder for Pipeline Construction is equipped with a crane attached to the vehicle, and an air compressor can be equipped as required. ZHHZ series full hydraulic Pay Welder for Pipeline Construction adopts rigid chassis and full hydraulic driving system, engine transfer its power to hydraulic pump and generator through transfer case, the connection between engine and hydraulic pump is direct, the connection between engine and generator is through a timing belt, transferring the speed as a certain speed reduce ratio. Main hydraulic parts are world famous brand. Big traction power, strong climbing ability, good capacity for loading, perfect brake capacity.

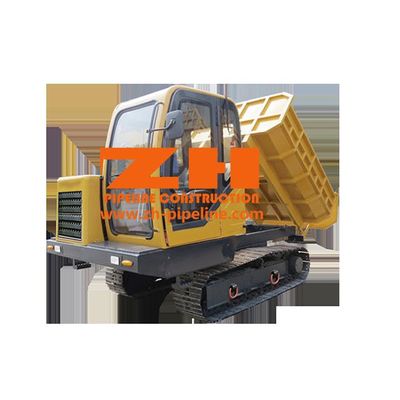

Crawler Dumper is a kind of construction machinery driven by hydraulic pressure and traveling on track. Crawler Dumper is a kind of non-highway driving equipment, mainly used for transporting loose materials in field construction, and widely used in agriculture, industrial and civil construction, transportation, water conservancy and hydropower engineering, farmland reconstruction, mining and modern engineering industry. The maximum load capacity of the Crawler Dumper is 10 tons, and it has the dump function.

Pipe Facing Machine consist of a diesel-powered or electric-powered hydraulic unit and the hydraulic powered facing machine itself, which is responsible for the shape-cutting of pipe ends. Both electric and diesel drive Hydraulic Power Units can be supplied for Arctic use down to -50°C or tropical area with higher temperature rating of 50°C.

The Pipelayer for Pipeline Construction is an important construction equipment in the construction of oil and gas pipelines, mainly used for the laying, aligning and trenching of large-diameter pipes. It has the characteristics of large lifting capacity and walking with heavy objects. There are many types of Pipelayer for Pipeline Construction. It can be divided into general Pipelayer, multifunctional Pipelayer and wetland Pipelayer according to the purpose; According to the structural characteristics, Pipelayer can be divided into bridge type pipe hanger, boom type pipe hanger and fixed type Pipelayer.

ZH Induction Heating System for Pipeline Construction adopts advanced technology IGBT inverter, with the help of IGBT inverter, ZH Induction Heating System provides high pressure while satisfying stable, high speed output to adapt to a variety of complex, extreme working conditions. ZH Induction Heating System equiped with DSP- Digital Signal Process, with the help of DSP-Digital Signal Process, ZH Induction Heating System provides digital precision control, the multi-channel input analog signal is converted into digital signal, easy operation and ensures stable power output under various extreme working conditions.

The ZHAC series of Pipe External Alignment Clamps are mainly used in the joint assembly process during pipeline welding, and are necessary construction tools for pipeline construction. The optimized structure of the ZHAC series of Pipe External Alignment Clamps can not only improve the working efficiency of the joint assembly, but also reduce the pipeline construction operations applicable to oil fields, long-distance pipeline lines, urban pipe networks, oil refineries, chemical industries and other industries. This product is developed according to the technical requirements of the joint assembly in domestic pipeline construction, and can meet the joint assembly operation of various pipe diameters ranging from φ 168 to φ 1422mm under – 19 ? to+60 ?.

Pipeline Roller Cradle is an important tool in pipeline construction, plays an important role in pipeline laying construction progress. The pipes are welded together through several technological processes such as welding and anticorrosion, and then slowly laid in the pre-dug pipes with the assistance of the Pipelayer. It is very important for pipeline construction to make the welded pipeline lay smoothly, complete the construction safely, and do not destroy the anti-corrosion layer outside the pipeline. Therefore, ZH company has developed Pipeline Roller Cradle to better assist the Pipelayer to complete the pipelaying construction.

With the development of energy industry, pipeline transportation is an important way of energy transportation, so pipeline construction is very important. Because pipeline construction is usually in a variety of harsh wild extreme environment, harsh natural environment has a great impact on pipeline welding work. Therefore, as a professional pipeline equipment manufacturer ZH developed its Pipeline Welding Tent. ZH Pipeline Welding Tent has good windproof, rainproof and fireproof performance. ZH Pipeline Welding Tent is equipped with two high power exhaust fans for fast exhaust speed. At the same time, an electric control cabinet with external power supply is equipped for pipeline welding work.

Pipe Internal Pneumatic Line-Up Clamps is a device that uses compressed air as the power source to drive, operate and control. It is mainly used in pipeline welding construction. Radial force is generated from the inside of the steel pipe to quickly align the two pipe nozzles to be assembled to meet the requirements of pipeline welding.
