Zhejiang Jinaolan Machine Tool Co., Ltd. products

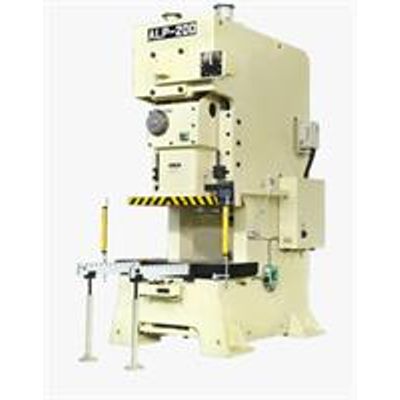

The ALP series of open-type fixed table presses are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing. It is manufactured in strict accordance with Japanese JIS Class 1 accuracy standards and is superior to domestic standards. The main components of our c frame punch press are all processed by imported CNC equipments. Japanese high-quality bearings and imported oil seal linings ensure the accuracy and longevity of the machine.

The ALC series of open type double crank c frame mechanical press is one of the best selling products of our company. The main drive gears, shafts, etc. are all enclosed at the top of the machine frame. After the body is welded with Q235-B, it will be tempered to eliminate the internal stress of the material. The main motor is mounted on the upper part of the frame, and the flywheel support, flywheel, clutch, etc. are installed on the rear side of the frame, and the flywheel is subjected to the assembly work after being tested for dynamic balance before assembly.

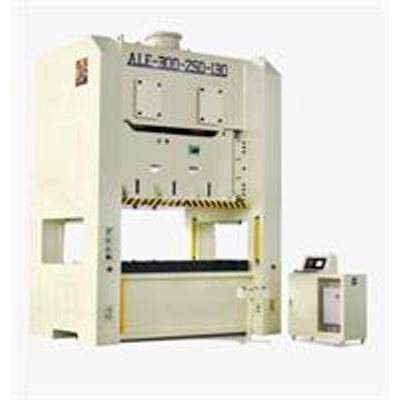

ALE series h frame power press machine is one of the hot products of KINGLAN high-precision press machines. It adopts the structure of closed type double-crank, frame made by welded steel plate which processed through heat treatment and elimination of internal stress. The transmission center and the center of whole machine tend to be the same to ensure accurate and stable stamping.

The T4L8 series mechanical eccentric press is a four point eight-linkage press. It has its own special structures as a large-scale tonnage press machine made by KINGLAN. In the transmission system of the press, the multi-link mechanism not only keeps the working stroke of the slider at a lower uniform speed, but also increases the speed of the slider in the approach stroke and the return stroke, thereby shortening the stroke cycle time of the slider and increasing the number of strokes of the press.

A single stage stamping die generally consists of a cavity and a punch or a plurality of cavities and a plurality of punches, but only one stamping process can be completed in one stroke during press punching.

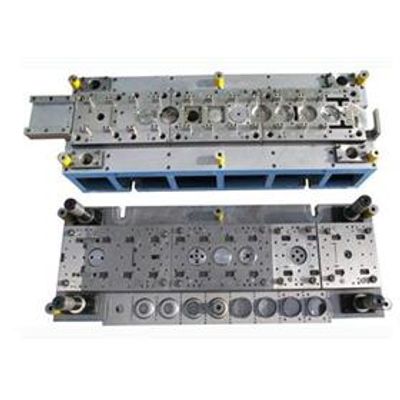

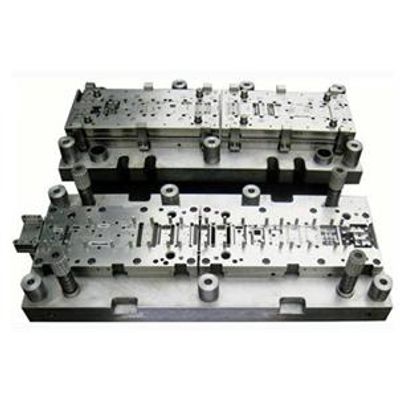

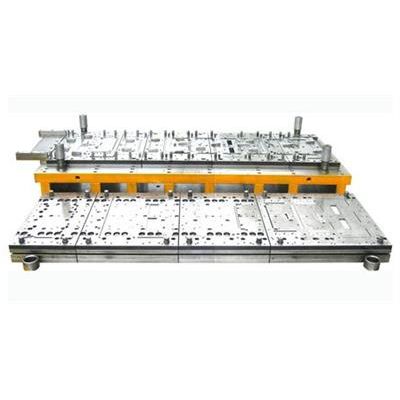

Progressive stamping die, also known as multi-position progressive die, jump die. According to the processing of the work piece, it is divided into a number of equidistant stations, set at each station one or more basic stamping process to complete the manufacturing of a stamped part.

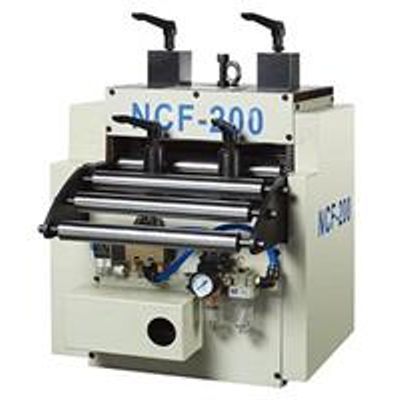

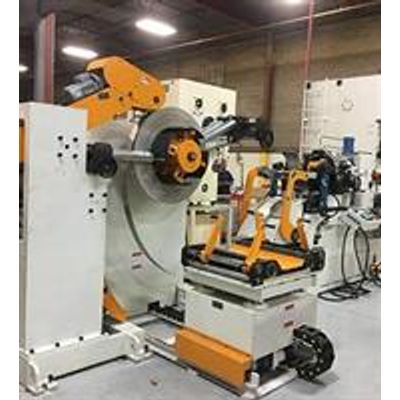

3 in 1 decoiler straightener feeder is especially suitable for high strength steel, enhancing the processing precision. Machine has adopted electric straightening precision adjustment which is easier to adjust than by manual. Electric and electronic parts are adopted European standard products, better in safety, stability, and lifetime.
