Zhengzhou Uniwin Filtering Equipment Co., Ltd. products

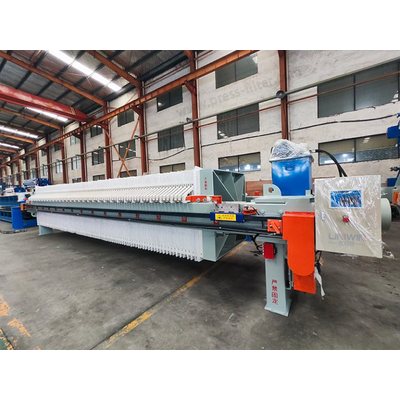

The plate and frame filter press is widely used for solid-liquid separation in various industries. It is known for its versatility and efficiency in separating solids from liquids, making it a popular choice in wastewater treatment, pharmaceuticals, food and beverage processing, and chemical manufacturing, among other applications.

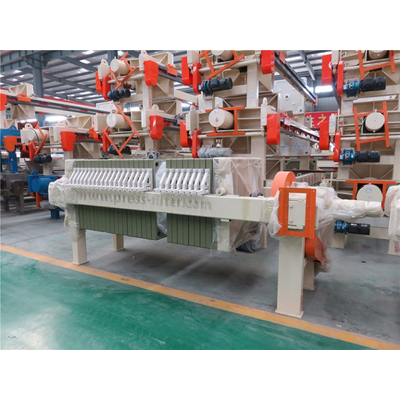

A recessed plate filter press is batch-operated filtration equipment that is used for solid-liquid separation of various suspensions, and the separation effect is good. This version of a  press filter is to use plates that have recesses in them.

A membrane filter press is a filter press that uses a membrane plate in combination with an ordinary filter plate. It uses additional pressure for secondary pressing to enhance the filtration and dehydration process, making it more efficient and effective in separating solids from liquids. The membrane filter chamber is formed by membrane filter plates and chamber filter plates; the feeding pump feeds the sludge into the chamber, and through the filtration of filter cloth, the solids and filtrate are separated. When the solids form the filter cake, then blow the air into the membrane to further dry the filter cake. Diaphragm filter presses offer great advantages in reducing moisture content and improving the overall filtration process.

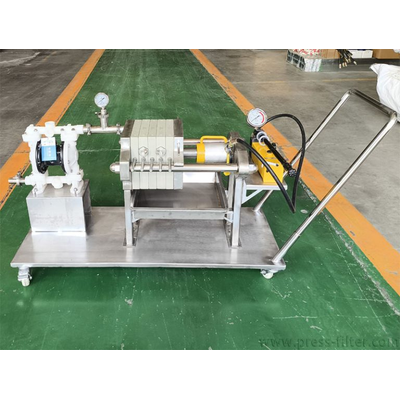

The laboratory filter press is a specialized device used in scientific and research laboratories for small-scale solid-liquid separation processes, mainly used for the separation, filtration, and purification of various solutions and mixtures in the laboratory. It is designed to mimic the operation of larger industrial filter presses but on a smaller scale, making it ideal for laboratory testing, process development, and quality control applications. The lab filter press is usually made of PP or stainless steel. For different filtering materials and processing capacities, we can customize the size of the filter press accordingly.

Stainless steel filter press, also known as stainless steel plate and frame filter press, is a continuous pressure solid-liquid separation equipment made of stainless steel. S.S. filter press normally adopts hydraulic closing. Compared with normal PP filter press, filter plates of stainless steel filter press are made of S.S.304 or S.S.316. The frame is carbon steel with SS coated, and the filter plates are totally made of stainless steel. It is a suspension solid-liquid separation filter machine that is widely used in food, environmental protection, light industry, pharmaceutical, chemical, metallurgy, petroleum industry, and so on. It is the ideal fine filtering equipment for beer, white wine, grape wine, liquid beverage, or sterilization filtration.

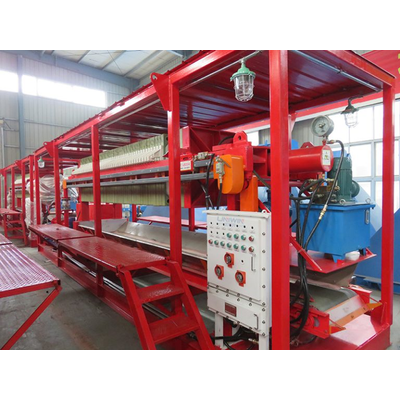

The mobile filter press is a filter press with a frame on the outside. It is usually installed on a special transport vehicle and can be moved at any time. It is mainly used for filtration and solid-liquid separation operations in different locations. These devices are typically used in applications that handle a variety of liquids and suspended solids, allowing them to be processed where they are needed without the need to transport feedstock to a fixed processing facility.

The gasketed CGR( Caulked Gasketed Recessed ) filter press is a filter press with gasketed filter cloth. What distinguishes a gasketed filter press from a non-gasketed one is the presence of rubber gaskets. These gaskets are placed around the edge of the plates to ensure a tight seal and prevent any leakage of the slurry or filtrate. When equipped with a gasketed filter cloth, the filter press caters to specific materials, delivering enhanced filtration results.

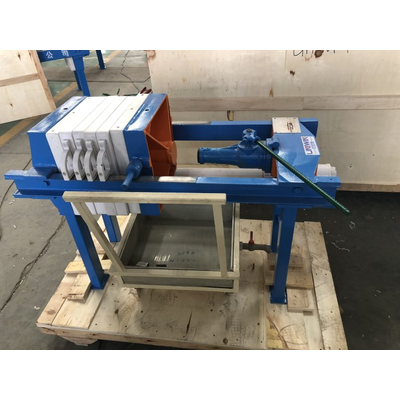

The manual jack filter press is a versatile and cost-effective filtration system used in various industries for separating solids and liquids. It is a compact and efficient solution that relies on manual operation to apply pressure and achieve the desired filtration results. The manual jack filter press offers a reliable method of filtration, making it a popular choice for small-scale operations, research laboratories, and applications where a smaller footprint is required.

The spare parts of filter press are :filter cloth,filter plates,filter plates handles,filter press nozzles etc.we can make the size of the filter cloth,filter plates according to the requirements. We use germany machines for the filter plates etc,this makes sure the smooth and flat of it .also for the filter fabric,we will use heatment treatment before delivery to make sure it will not be out of shape when using.

In view of the characteristics of wastewater and requirements of the filter cake from stone industry(marble,granite etc),kaolin,ceramic,construction materials,we designed the high pressure round filter press that can bear high pressure as high as 2.0 Mpa ,and get very dry filter cake and very low moisture.
