ZHOU ENSI LTD services

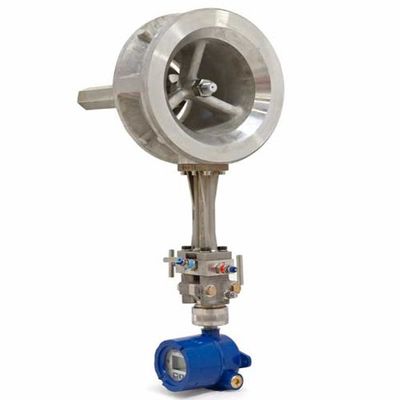

Spirax Sarco - ILVA series Gilflo Flowmeters
ILVA DN50 ILVA DN100 ILVA DN150 ILVA DN200 ILVA DN250 ILVA DN300. The Gilflo flowmeter offers an unrivalled 100:1 turndown ratio, requires short pipe straight runs, and can be used to meter most industrial fluids including steam and gases. Available in pipeline sizes 2'' to 16''. ILVA – wafer connection in 2' to 12' line sizes. Compact unit still delivers high accuracy, wide 100:1 turndown and short straight run requirements. The Gilflo ILVA flowmeter operates on the spring loaded variable area principle and produces a differential pressure related to the rate of flow. It can be used with most industrial fluids, gases and both saturated and superheated steam. A general description of the ILVA flowmetering system and its associated equipment is given in a separate TI sheet. Sizes and pipe connections DN50, DN80, DN100, DN150, DN200. For DN250 and DN300 sizes see separate literature.

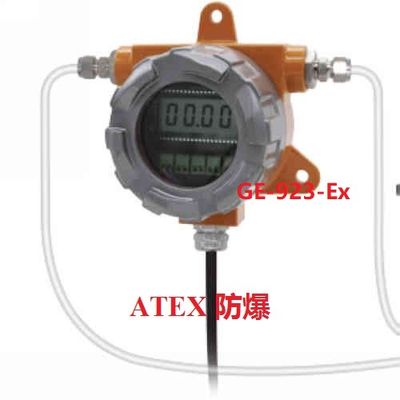

A.YITE - ATEX Air Differential Pressure Sensor
GE-923-Ex ATEX certificated Air Differential Pressure transmitter is produced with magnetic sensing technology, pressure ranges from 0~±25Pa at up to 10000KPa. Available with Unidirectional and bidirectional pressure ranges, and air velocity, with LCD display screen, 4-20mA output or RS-485 signal. ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; Satisfy to the requirement of the ATEX Directive 2014/34/EU from 15th,AUG, 2020, by compliance with harmonized standards: EN IEC 60079-0:2018 EN 60079-1: 2014 EN 60079-31: 2014
AYT - ATEX Air Flow Velocity Sensor
The explosion-proof air speed sensor can not only measure the air flow rate, but also measure the air flow of the air duct as the air volume transmitter. ATEX Certificated Air Flow Speed Transmitter, ExdIICT6 ExtdIIICT85C It is waterproof and can be used outdoors or in high temperature environment. Measurement range: 0-10m / s, 0-20M / s, 0-30m / s, 0-40m / s, 0-70m / s, 0-100m / S Maximum overload: 5 times of standard range
