Zhuozhou Tianpeng
19 products found
Zhuozhou Tianpeng products
Tianpeng/C-tech - Model SPT-C390 - Fully Hydraulic dynamic soil probing rig on Crawler Chassis
1. The dynamic probing rig SPT-C is a highly functional soil investigation machine, easy to transport due to the folding mast feature. 2. It is versatilely suitable for working in confined spaces and is displaced in outdoor terrains. 3. The folding mast is used for easy transportation, it can control the lifting of the mast by the oil cylinder, adjust the lateral rotation, adjust the front and back, and fold the upper part of the mast 4. Dynamic Probing DPL, DPM, DPH and SPT. 5. Worktable with vice and large capacity storage boxes on both sides 6. Rod extraction function 7. Mechanical shock counter Hydraulic station unit Specifications: Honda Engine GX390, maximum power 8.7kw, electric start, with hour meter and voltmeter Hammer mass-DPL 10kg, DPM 30kg, DPH 50kg, DPSH & SPT 63.5kg Number of blows-15-30 blows per minute Dropping height-500 / 750mm adjustable Window sampling-With 51mm outer diameter, 1m length, split sampler(Optinal) Extraction unit-16ton pulling force Weight-845kgs
Tianpeng/C-tech - Model CPT DMT - Geotechnical Flat Dilatometer Test Apparatus (DMT)
DMT determines in a quick, precise, simple and economical way various important parameters used in geotechnical design. The results are highly repeatable and independent of the operator. The DMT is used in 50 countries. It is standardized in the ASTM (USA) norms, in the Eurocode and CEN ISO/TS 22476-11:2005. The field of application of the Flat Dilatometer Test DMT is very wide: Accurate settlement prediction of shallow foundations Compaction control Sensing the effects of pile installations Liquefiability of sands To verify if a slope contains slip surfaces Axially loaded piles in cohesive soils Laterally loaded piles Pavement subgrade compaction control Coefficient of consolidation and permeability of clays Phreatic level in sands Help in selecting FEM input parameters
Tianpeng/C-tech - Model K-100 - Dual Mass Dynamic Cone Penetrometer (DCP) K-100
DUAL MASS DYNAMIC CONE PENETROMETER (DCP) K-100 8kg or 4.6kg hammer, 57.5 cm. fall Standard: ASTM D 6951-03 Model K-100 FEATURES: • This application describes measurement of the penetration rate of the model K-100 DCP(dynamic cone penetrometer)with a single mass or dual-mass. • The K-100 Standard Kit measures the shear strength of soil with a CBR between 0.5-100. Affordably priced, this kit is for local engineers and geotech fi rms. With it the user can produce CBR value profi les in the fi eld. It comes with a 30" drive rod (actual penetration depth 28 1/4"), 25 disposable cones and a cone adapter for fast and easy extraction of the instrument from hard soil. • Additional disposable cones, cone adapters, and hardened points are available. • One year warrantee against any manufacturing defects.
Tianpeng/C-tech - Model 16-T0012/E - Australia standard Dynamic Cone Penetrometer DCP
MANUAL DYNAMIC CONE PENETROMETER 16-T0012/E 9 kg hammer, 51cm. fall Standard: AS1289.6.3.2 Model 16-T0012/E FEATURES: • It is tough and robust having been well proven in the field over many years. • Allied to the foregoing, the replaceable Shear Pins enable field repairs to be easily and rapidly carried out. • It is supplied with a reversible ‘Top Nut’, enabling it to be used in the standard configuration (as it is supplied) or easily changed over to the Perth Sand Penetrometer configuration. • ‘DCP Kit’ comprises all the equipment and tools required to carry out a DCP test (as well as a spare set of shear pins) and all parts are designed to be replaceable on an individual basis (see parts list). • One year warrantee against any manufacturing defects.

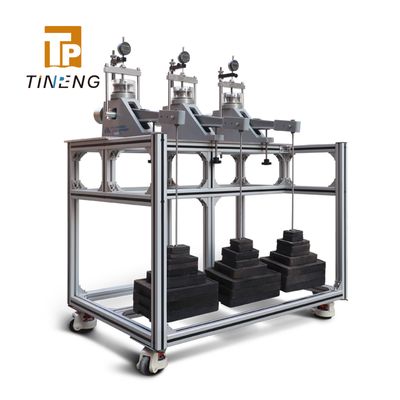

Tianpeng/C-tech - Model direct shear and consolidation triaxial test - Soil Consolidometer/soil direct shear machine/consolidation and triaxial test equipment
GZQ series automatic consolidometer adopts mechanical, electronic, automatic control technology, sensor automatic detection technology and computer technology into one, which can carry out various consolidation tests, automatically complete loading and unloading and data acquisition functions, and can completely replace the traditional lever consolidometer.
Tianpeng/C-tech - Model Pendulum skid micro-deval - skid resistance and friction tester/Los angeles abrasion and micro deval abrasion test
The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.
Tianpeng/C-tech - Model vane shear penetrometer - soil vane shear/pocket penetrometer
The Field Inspection Pocket Vane Tester 16-T0174 is especially designed to measure the in situ undrained shear strength in clays. The instrument consists of a T-handle cylindrical body where a torsional spring is housed, and three interchangeable vanes of different sizes, used depending to the expected strength of the soil to be tested. The height/diameter ratio of all vanes is 2.
Tianpeng/C-tech - Model SPT - standard penetration test
Standard Penetration Test (SPT) to BS1377:Part9:1990. SPT Drive Rods and a Split Tube Sampler are connected to base of the anvil, and driven into the ground by the falling weight. The Automatic Trip Hammer comprises a weight of 63.5kg complete with pick-up and selftripping mechanism that ensures that the weighthas a free-fall of exactly 760mm. The inner shaft acts as a guide that permits the weight to drop with minimal resistance and ensures that the weight strikes the anvil squarely.
C-Tech - Model asphalt mixture testing - asphalt slab roller compactor/wheel tracking/gyratory compactor
It is mainly used for compacting slab asphalt mixture specimens, can compact specimens of various specifications, and the slab specimens used for Hamburg wheel tracking tests. Adopts cylinder loading and the servo motor controls the forward and backward of the test mould.
