Ziegler Electronic Devices GmbH (ZED) products

In most UV systems, monitoring of UV-C irradiance is essential to ensure disinfection on water treatment systems or to ensure the effect on photochemical processes. The UV probes used for these measurements are exposed to high-energy UV radiation, which may cause aging effects. Due to that, periodic testing and recalibration is required to meet different regulations. ÖNORM M5873-1 recommends a certification validity and recalibration interval of one year.

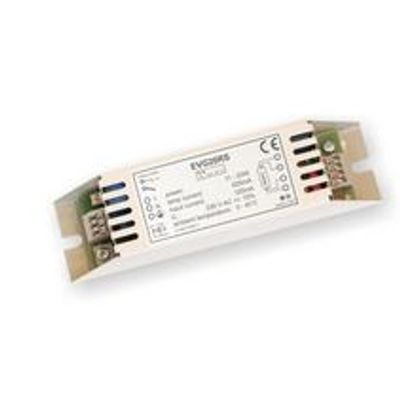

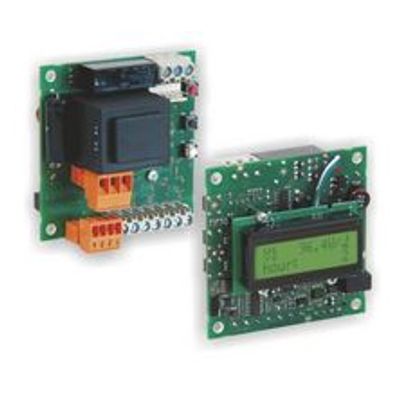

The internal digital processing of the ZED digital ballasts and D-sensors combined with digital communication interfaces allows the constant monitoring and control of all important parameters in UV systems.

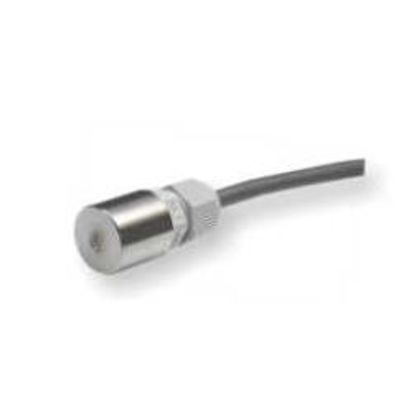

UV-C sensors with photodiode signal.

UV-C sensors with photodiode signal.

Besides the UV measurement value the ZED TinyMeter enables access to sensor specific data: sensor-ID, operating hours and date of last adjustment/calibration. Exceeding the specified operating hours of a connected reference sensor is indicated in the display.

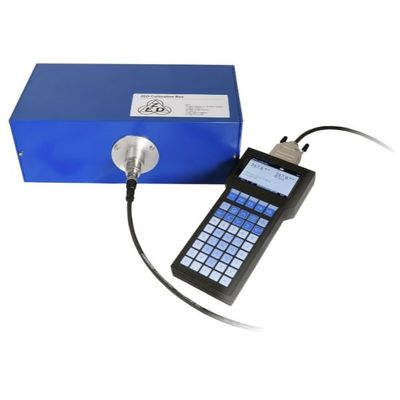

The ZED SmartMeter is a comfortable operating and display device in the form of common handheld radiometer. It provides a graphical measurement-progress indicator to evaluate the temporal stability of the values. The measured values can be recorded over a defined period using the data logging function.
