Project - USA 5 - Veolia

Project Description:

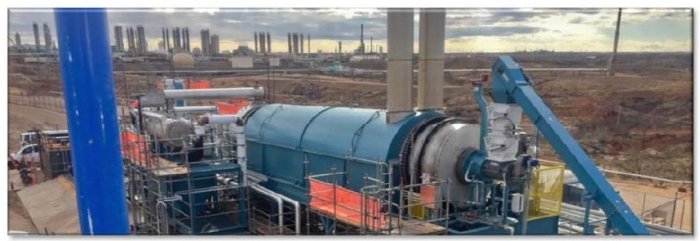

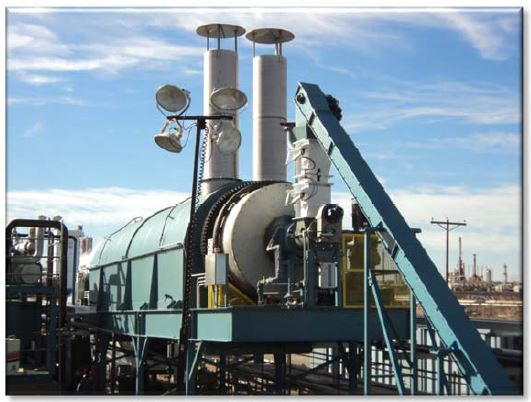

RLC Technologies was contracted by Veolia Water North America to construct a 96” diameter by 48’ length ATDU system for the processing of tank bottoms, oily sludge and refinery waste. The 96” ATDU is the largest built by RLC to date. The plant is fired with natural gas and features an RLC built Thermal Oxidizer Unit for the handling of non-condensable vapors.

Material:
Refinery Waste including
centrifuged tank bottoms

Composition:
Solids Content: ±40%
Oil Content: ±30%
Water Content: ±30%

Start Date: 2014
Processing Rate: 8 ton/ hour
