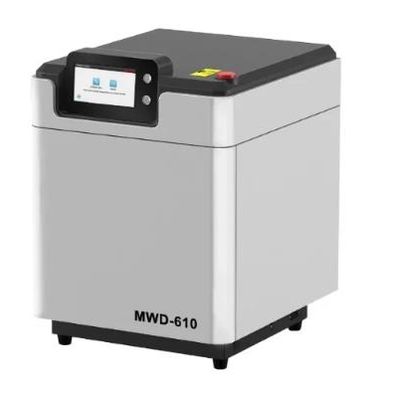

Technical Specifications of MWD-610 Series Microwave Digestion System

In the realm of analytical chemistry, the advanced microwave digestion system offers a suite of features that meet the needs of laboratories that require high throughput and reliable sample digestion. In this blog post, Metash will share the technical specifications of the MWD-610 Series microwave digestion system, which stands out in the industry.

The MWD-610 Series is designed to accommodate a variety of sample rotors, compatible with 6, 8, 10, and 12-position configurations, ensuring flexibility for laboratories of different scales. This adaptability allows for efficient processing of multiple samples simultaneously, streamlining workflows in high-demand settings.

At the core of the MWD-610 Series is the advanced sensor technology. The systems are equipped with imported contactless IR sensors and pressure sensors, providing real-time monitoring of the temperature and pressure within each vessel. This feature is crucial for precise control and safety, as it allows for the direct measurement of the sample solution`s conditions, not just the vessel wall. The systems display a T&P scanning curve, offering a visual representation of the digestion process, which is invaluable for quality control and method development.

Maintenance costs are significantly reduced with the MWD-610 Series, as it operates without consumables such as bursting disks or sealing cups. This feature not only lowers operational expenses but also contributes to a greener laboratory environment by minimizing waste.

User experience is enhanced with a smart 7-inch touchscreen interface, offering a user-friendly UI that simplifies operation and programming. The system comes pre-installed with multiple international application methods, which can be edited, modified, or deleted according to user-specific requirements, ensuring adaptability to various analytical needs.

The MWD-610 Series boasts an explosion-proof cavity made from 316L stainless steel, coated with multi-layer anti-corrosive and heat-resistant coatings. This design extends the service life of the system and ensures operational safety, even in the face of aggressive chemicals used in digestion processes.

Cooling is another area where the MWD-610 Series excels, with a high-power turbulent air cooling design that facilitates rapid cooling of the system post-digestion. This feature is essential for quick turnaround times in laboratories where time is of the essence.

Electromagnetic protection is a key consideration in microwave systems, and the MWD-610 Series is professionally designed to meet high-level microwave leakage protection standards, ensuring the safety of both the samples and the operators.

Technically, the MWD-610 Series offers a range of models to choose from, each tailored to the number of vessels required: MWD-610-T6 for 6 vessels, MWD-610-T8 for 8, MWD-610-T10 for 10, and MWD-610-T12 for 12. Each model is equipped with contactless IR sensor temperature monitoring, with a temperature control range of 50-400°C and a maximum working temperature of 250°C, ensuring precise temperature control. The pressure monitoring system operates within a range of 0-15MPa, with a maximum working pressure of 6Mpa, crucial for high-pressure digestion processes.

The sample vessels are made from imported TFM, known for its durability and chemical resistance, while the protection vessels are made from a composite of PEEK and glass fiber, providing additional strength and safety. The display is a 7-inch color touch screen, facilitating easy navigation and control. The systems also feature one-direction 360° continuous rotating, ensuring thorough mixing and even heating of the samples.

The microwave cavity is made from 316L stainless steel with corrosion-proof coating, and the power is adjustable from 0-1000W, allowing for precise control over the digestion process. The system meets strict microwave leakage standards, with a leakage rate of less than 5mW/cm2, and is equipped with a high-power corrosion-proof air blower for efficient air exhaust.

In conclusion, the MWD-610 Series Microwave Digestion System by Metash is a powerhouse in the field of sample preparation, offering a combination of flexibility, precision, safety, and user-friendliness that is hard to match. With its robust technical specifications, it is poised to become a staple in laboratories seeking to enhance their analytical capabilities.
