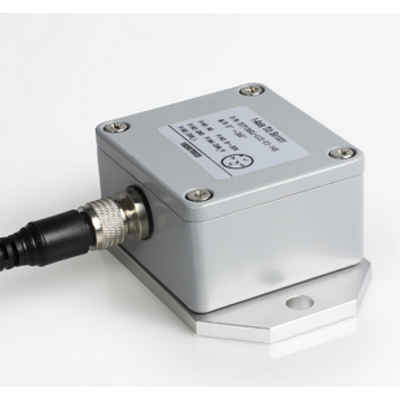

Zhichuan - Model ZCT1360J-LCS-E3-145 -0-360° Can Bus Output Single-Axis Tilt Sensor
ZCT1360J-LCS-E3-145 is a highly accurate and stable single-axis tilt sensor which is developed and manufactured by Shanghai Zhichuan Electronic Tech. Co., LTD. Measurement range is 360 degrees. CAN bus communication.
Most popular related searches

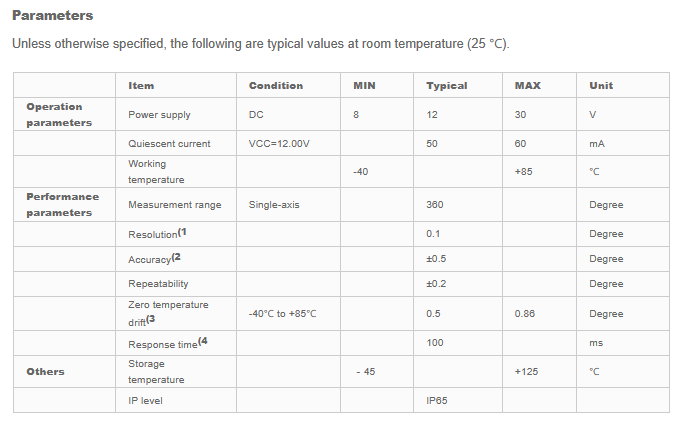

- Product Model: ZCT1360J-LCS-E3-145
- Measuring Range: 0~360 °
- Output: CAN
- Power：Voltage(8～30V)
- Measuring Axis: Single Axis
- Accuracy: 0.1 °-0.5°
- Application: Machinery
- IP Degree: IP65
- High accuracy, High cost-effective
- High stability, High reliability
- Aluminum housing, IP65
- Wide range power supply
- Power reverse connection protection
- Angle measurement
- Safety control, monitoring and alarm
- Real-time tilt angle record
- Construction machinery
