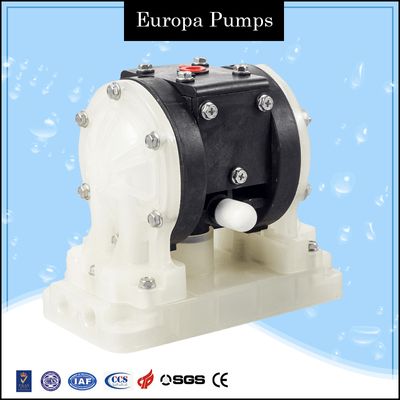

Ceracin - 0.25 Inch AODD Pump

1/4 in (6.35 mm) end-porting. Low-cost, compact design. Spring check valves for superior priming in any mounting configuration. True-formed PTFE and Santoprene diaphragms for enhanced performance. External controller for optional remote operation.

Most popular related searches

spring check valve

Typical Fluids Handled^{Our Pumps Comes With Exclusive Features!}

Waterborne materials, some HHC’s
Paints, coatings, inks and dyes
Car wash chemicals
Laundry chemicals and detergents
Chemicals & Inks

Typical Applications^{Various Applications In Different Industries!}

Printing ink supply
Wastewater chemical supply
Plating/surface finishing
Chemical dosing

Max Working Pressure: 100psi(0.7Mpa ,7bar)
Max Flow Rate: 4.5gpm(17lpm)
Max Reciprocating Speed: Dry running320cpm; Wet running250cpm
Max Suction Height (Dry Sucking): 3m
Max Permitted Grain: 1.5mm
Max Air Consumption: 7.0scfm(3.5L/s)
Air Inlet Size: 1/4in.npt(f)1/4in.bsp(f)
Air Outlet Size: 1/4in.npt(f)1/4in.bsp(f)
Fluid Inlet Size: 1/4in.npt(f)1/4in.bsp(f)
Fluid Outlet Size: 1/4in.npt(f)1/4in.bsp(f)
Weight: PP pump 1.1kg

Ceracin - 0.25 Inch AODD Pump

Features & Applications

Parameters
