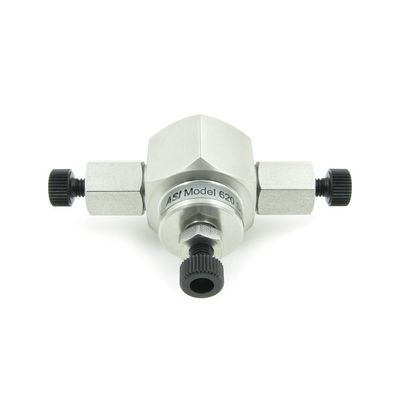

ASI - Model 620-PO10-04 -1,000:1 Split Ratio, Analytical Binary Fixed Flow Splitter
This binary fixed flow splitter is for Post-Column Applications. Our default inlet flow for calibration is 1.0 mL/min. In order to assure optimum pressure drop across the splitter, please specify the inlet flow if it is significantly different from the default calibration inlet flow rate. You can specify the inlet flow (mL/min.) within a range of 0.1 - 5 mL/min. under Custom Specification field. Mounting Bracket available separately.
Most popular related searches
Fixed Flow Splitter
- Post Column Application, Binary
- Analytical Inlet Flow Range: 0.1 - 5 mL/min.
- Split Ratio = 1,000:1
SPECIFICATIONS:
- Port size: 10-32 CPI (standard HPLC fittings for 1/16" tube)
- Compatible with Thermo Scientific™ nanoViper™ Fingertight Fittings
- Maximum Operating Pressure: 350 bar (5,000 PSI)
- Dimensions: 1.3" h x 2.1" w x 1" hex
- Dimensions with bracket: 3.7" h x 4" w x 3.2" d
PART NUMBER:
- 620-PO10-04
WETTED MATERIAL:
- Stainless Steel, PEEK
