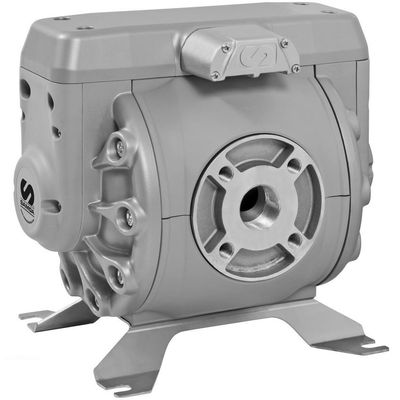

Directflo - Model DF250 -1 1/2" Pneumatic Double Diaphragm Pump
FromSamoa Industrial
Very reliable diaphragm aluminium pumps for large volume transfer (250 l/min max.), dispensing and evacuating a variety of fluids. These pumps have an aluminium air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions. They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.
Most popular related searches
pneumatic diaphragm pump
diaphragm pump
double diaphragm pump
air intake
lubrication equipment
hose reel
pump system
ball valve
delivery cycle
fluid pump
- Pump size: 1 1/2"
- Pressure ratio: 1:1
- Maximum free flow delivery: 250 l/min (66 gal/min)
- Air pressure operating range: 1,5-8 bar (20-120 psi)
- Solids in suspension maximum size: 6 mm (0,25 ")
- Maximum dry suction head: 5 m (16 ft)
- Maximum wet suction head: 8 m (26 ft)
- Delivery per cycle: 1,2 l (0,32 gal)
- Fluid inlet: 1 1/2" BSP (F) / DIN2576 PN-10 DN40
- Fluid outlet: 1 1/2" BSP (F) / DIN2576 PN-10 DN40
- Air inlet: 1/2" NPSM (F)
- Air exhaust port: 1" BSP (F)
- Sound level: 80 dB
- Certification: ATEX
- Fluid path material: Aluminium
- Diaphragms type & material: Hytrel
- Valve seats material: Stainless steel (AISI 316)
- Valve balls material: Acetal
- Shaft material: Stainless steel
- Seals material: NBR
- Other wetted materials: Stainless steel
- Wetted materials: Aluminium, Hytrel, Acetal, Stainless steel (AISI 316), Stainless steel, Viton
- Air motor material: Aluminium
- Weight: 20 kg (45 lb)
- Compatible fluids: Coolant
