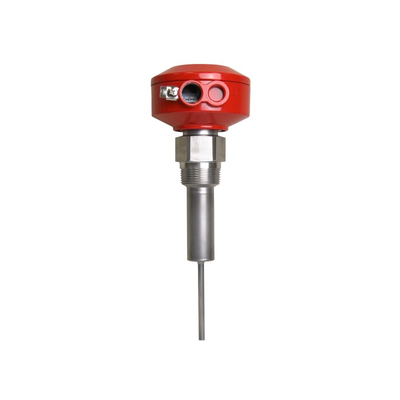

BinMaster - Model CVR-625-HTL -NPT-730-0654 -1-1/4" High Temp Compact Vibrating Rod Level Sensor

Compact vibrating probes for small vessels or tight spaces

Insertion length of just 6”. Two mounting options:

CVR-600: 1” NPT

CVR-625: 1.25” NPT

Point level detection in plastics, food, seed, chemicals, and many other powder or bulk solid materials.

Why you will like these vibrating level sensors:

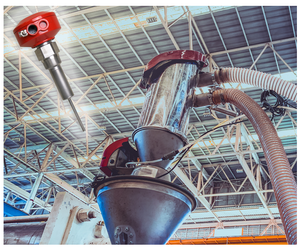

• Fit in space-constrained hoppers, bins, and feeders
• Self-cleaning sensor resists buildup and is wear and maintenance free
• Universal wide range power supply 20-250V AC/DC
• For process temperatures up to 300°F or remote electronics available

No false alarms. Time delay feature for 1 second from stop of vibration and 2 to 5 seconds from start of vibration prevents false alerts.

Mounting versatility. CVR-600 uses a 1” mounting connection, while the CVR-625 is mounted through a 1.25” mounting socket.

Low dielectric materials. Work in very light materials with a bulk density as low as 2 pounds per cubic foot as well as heavier or clingy materials.

Level alerts. Wire to a light, horn, point level alarm, or control panel for high or low-level notification to help with replenishment and process control.

No calibration needed. Just set to one of three sensitivity settings for low, medium, and high levels of sensitivity based upon the material being measured.
