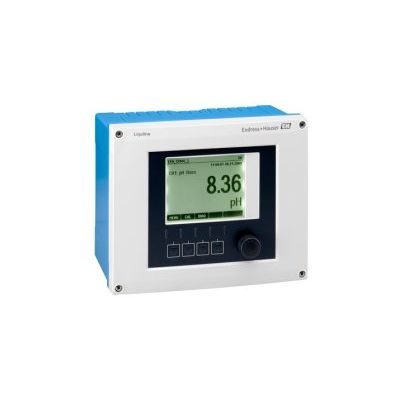

Liquiline - Model CM442 -1-/2-Channel Transmitter

SHARE

Expandable multiparameter field device for all industries. Liquiline CM442 is a digital multiparameter transmitter for process monitoring and controlling in any application. The 1-/2-channel controller saves you time and money by offering seamless system integration, simple operation and a reduced need for spare part stock. Liquiline CM442 provides you with all the benefits of a best-in-class transmitter platform from clever simplicity to maximum process safety.

Most popular related searches
multiparameter transmitter
life science
wastewater chemical
hazardous area
liquid analysis
pH/redox
process safety
process monitoring
dissolved nitrate
turbidity sensor

  • Clever simplicity:
    One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.

  • High flexibility:
    Universal modules for all parameters minimize spare part stock and allow for easy extension to up to 8 channels at any time.

  • Seamless system integration:
    Unique portfolio of communication standards suits every distributed control system (DCS).

  • Simple and safe commissioning:
    Saving configuration on SD card enables fast set-up on duplicate installations.

  • Process control from a distance:
    Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

  • Higher availability, lower costs:
    Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

The Liquiline CM442 multiparameter transmitter is suitable for all applications in non-hazardous areas, for example in the following industries and their utilities:

  • Food & Beverages
  • Life Sciences
  • Power & Energy
  • Water & Wastewater
  • Chemicals

Liquiline CM442 features all common communication protocols and interfaces, such as:

  • 0/4...20 mA
  • HART
  • PROFIBUS DP
  • Modbus TCP / Modbus RS485
  • EtherNet/IP
  • Webserver
  • Measuring principle

    UV photometric

  • Application

    Modular 4 wire controller
    Multichannel:1-2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input
    2...4x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Plastic (polycarbonate)

  • Dimension

    237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

  • Process temperature

    -20...60°C / 0...140°F

  • Ingres protection

    IP67

  • Input

    1...2x Memosens digital input
    2x 0/4..20mA Input optional
    2x Digital input optional

  • Output

    2...4x 0/4...20 mA current outputs
    alarmrelay
    2x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet
