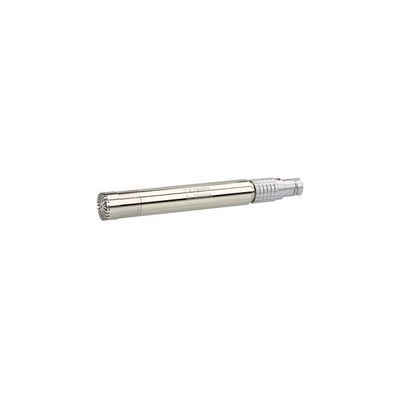

Zxonic Family PrePolarized - Model 1029 -1/2 Inch Diffuse-Field Microphone, 3.15 Hz – 40 kHz
Type 1029 diffuse-field microphone is designed for random-incidence measuremnts over 3.15 Hz to 12.5 kHz. TEDS functionality is available. Type 1029 Series are 1/2`` diffuse-field prepolerized microphone sets optimized for general random-incidence measurements. Engineered for precision in complex acoustic environments, these microphones offer a wide frequency response from 3.15 Hz to 12.5 kHz and a dynamic range of 20 to 162 dB, making them ideal for both low-level ambient noise and high-intensity sound pressure levels.
Most popular related searches
field microphone set
sound pressure level
microphone set
acoustic transducer
sound intensity level
precision acoustics

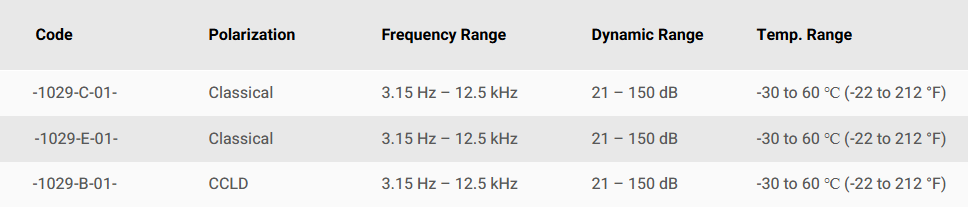

- Family 1029
- Frequency response characteristics: Diffuse-field
- Polarization voltage [V]: Classical, CCLD
- Sensitivity [mV/Pa]: 33.5 mV/Pa
- Lower limiting frequency: 3.15 Hz
- Higher limiting frequency: 12.5 kHz
- Cartidge thermal noise: 21 dB(A)
- Dynamic range: 21 - 150 dB(A)
- Diameter: 1/2 inch
- Venting: Rear
- Operating temperature range: -30 - 60 ℃ (-22 to 212 °F)
