Zxonic Family PrePolarized - Model 1023 Series -1/2 Inch Free-Field Microphone, 3.15 Hz - 20 kHz
Type 1023 is designed for high-precision, free-field measurements where a microphone with high sensitivity is required. The 1023 Series measure from 3.15 Hz up to 40 kHz, and is compatible with CCLD and classic-type preamplifiers, offering flexibility for various measurement setups.
Type 1023 Series is our most recommended microphone set. know for its high sensitivity of 50 mV/Pa, and a dynamic range from 20 - 162 dB. To meet varying application needs, the standard Type 1023 Series offers a frequency range of up to 20 kHz, with extended versions available up to 40 kHz upon request.
The unit is assembled in clean-room environment. Each microphone and preamplifier can be identified by a printed type number and a unique serial number.
The unit has TEDS available, which means that information about the serial number, type and sensitivity is stored within it.

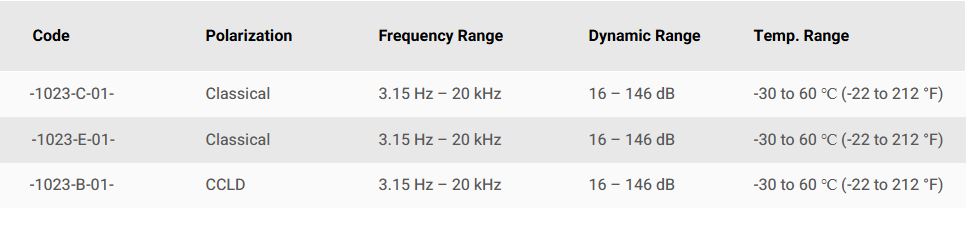

- Standard: IEC 61094
- Frequency response characteristics: Free-field
- Polarization voltage [V]: Classical. CCLD
- Sensitivity [mV/Pa]: 50 mV/Pa
- Lower limiting frequency: 3.15 Hz
- Higher limiting frequency: 20 kHz
- Cartidge thermal noise: 16dB(A)
- Dynamic range: 16-146dB(A)
- Diameter: 1/2 inch
- Venting: Rear
- Operating temperature range: -30-60°C(-22to212°F)
