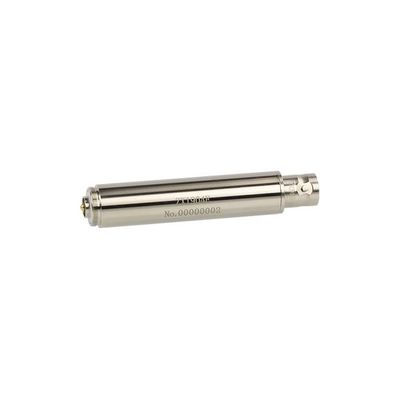

Zxonic - Model Type 1904 - CCLD -1/2-Inch Microphone Preamplifier
ZXONIC Type 1904 microphone preamplifier is designed for usage in a wide range of applications. ZXONIC CCLD Microphone Preamplifier Type 1904 offer reliable performance with a CCLD input module. If offers a wide frequency range of 10?Hz to 200?kHz, and supports TEDS functionality for sensor identification.
Most popular related searches
sound monitoring
prepolarized microphone
acoustic transducer
noise monitoring
industrial noise monitoring
ICP
industrial noise
- BNC connector for easy installation and use
- Low output impedance so that long extension cables can be used
- Cost-effective for multi-channel sound measurement with 1/2'' or 1 '' prepolarized microphones
- ICP® compatible
- Supports TEDS
- Multichannel signal analysis measurements
- Multichannel sound power measurements
- Industrial machinery noise measurements
- Diameter: 1/2 inch
- Connector at Preamplifier: BNC
- Polarization Voltage: 0 V
- Low Distortion Frequency Response Range (±0.5 dB): 10 Hz - 200 kHz
- Frequency Response Range (±0.2 dB): 20 Hz - 20 kHz
- Input Impedance: ≥10 GΩ
- Input Capacitance: ≤0.5 pF
- Harmonic Distortion: ≤ 0.1% (1V/1 kHz)
- Output Voltage: ≥ 5 Vrms @ 30 V
- Output Impedance: ≤ 50 Ω
- Power Supply: ICP 2 mA – 10 mA
- TEDS: YES
- Operating Temperature Range [°C]: -20°C to 60°C
- Operating Humidity: 30% – 90%
