Zxonic Family PrePolarized - Model 1026 Series -1/2 Inch Pressure-Field Microphone, 3.15 Hz – 20 kHz
The 1026 Series are pressure-field, prepolarized microphone sets, designed for high precision acoustic coupler measurements. The 1026 Series measure from 3.15 Hz to 20 kHz, and has TEDS available. Type 1026 Series are pressure-field, prepolarized microphone sets, designed for cost effective acoustic coupler measurements. Type 1026 series provide a precision wide measuring range of 20 to 161 dB.
Assembly
Each unit is assembled in a clean-room environment to ensure high-quality performance and minimal contamination. Both the microphone and preamplifier are individually labeled with a printed type number and a unique serial number for traceability.
TEDS
The unit is equipped with TEDS (Transducer Electronic Data Sheet) functionality, allowing important information—such as type number, serial number, and sensitivity—to be stored directly within the device for seamless identification and system integration.

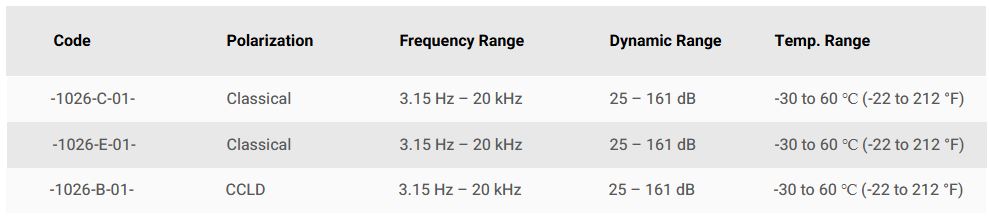

- Standard: IEC 61094
- Frequency response characteristics: Pressure-field
- Polarization voltage [V]: CCLD, Classical
- Sensitivity [mV/Pa]: 12.6 mV/Pa
- Lower limiting frequency: 3.15 Hz
- Higher limiting frequency: 20 kHz
- Cartidge thermal noise: 25 dB(A)
- Dynamic range: 25 - 161 dB(A)
- Diameter: 1/2 inch
- Venting: Side
- Operating temperature range: -30 - 60 ? (-22 to 212 °F)
