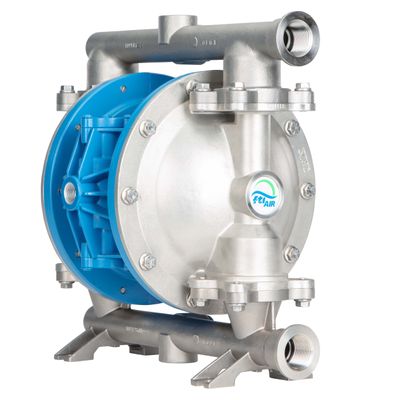

FTI Air - Model FT10 -1”/25 mm Metallic Air Operated Double Diaphragm Pump
The FTI Air Model FT10 air operated double diaphragm pump features a robust and reliable design marking it as an essential component in industrial fluid handling. This pump is particularly noted for its unique stall-free air valve system, eliminating the need for separate or mechanically operated pilot valves, thereby minimizing potential failure points. Constructed with bolted assembly, this model ensures leak-free operation and is available with wetted components made from either 316 stainless steel or aluminum for enhanced chemical compatibility. The wide range of diaphragm, ball, and seat materials, including EPDM, PTFE, Buna, Hytrel®, and polyurethane, enables versatility across diverse applications. This simplicity in design, coupled with fewer parts, results in less frequent failures, making it an efficient choice for various industrial environments requiring consistent, reliable fluid processing.Most popular related searches
air-operated double diaphragm pump
double diaphragm pump
air-operated diaphragm pump
diaphragm pump
air intake
air diaphragm pump
air valve
air modeling
particle sizing
fluid handling
Specifications
- Suction & Discharge Size: 1” x 1”
- Porting Location*: End
- Connection Types**: FNPT, FBSPT
- Air Inlet & Air Exhaust Size: 1/2” FNPT x 1/2” FNPT
Capabilities
- Maximum Flow Rate: 51 gpm (193 lpm)
- Maximum Air Supply Pressure: 120 psi (8.3 bar)
- Displacement Per Stroke: 0.084 gal (0.32 lit)
- Minimum Air Inlet Pressure: 10 psig (0.7 bar)
- Maximum Particle Size: 0.25” (6.4mm)
- Sound Pressure: 73.6 dB(A)
- Operating Temperature: Determined by elastomers
Construction
- Wetted Materials: 316SS or Aluminum
- Diaphragm Materials: Neoprene, Santoprene™, FKM, EPDM, PTFE, Buna, Hytrel®, polyurethane
- Air Valve: GFRPP, Aluminum
- Ball Materials: Neoprene, Buna, Santoprene™, FKM, EPDM, PTFE
- Seat Materials: Aluminum, 316SS, PTFE
- O-ring Materials Neoprene, Buna, FKM, EPDM, PTFE, FEP/FKM
Dimensions & Weights
- 316 Stainless Steel Aluminum
- Maximum Height: 14-3/16” (360 mm) 14-13/32” (366 mm)
- Maximum Width: 14-5/16” (364 mm) 14-3/4” (375 mm)
- Maximum Depth: 10-11/16” (271 mm) 10-11/16” (271 mm)
- Weight: 48.7 lb (22.1 kg) 34.2 lb (15.5 kg)
- Acids & Bases
- Plating Solutions
- Water & Wastewater
- Paints, Inks, Solvents
- Ceramic Slip & Glaze
- Lubricants & Oils
