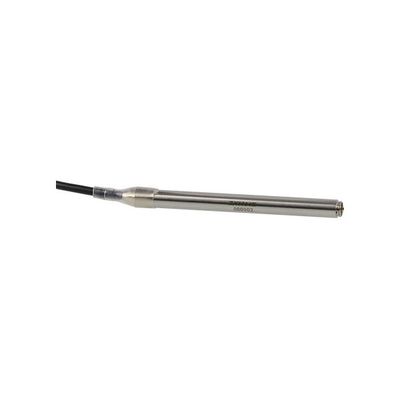

Zxonic - Model Type 1914 - CCLD -1/4-Inch Microphone Preamplifier
ZXONIC Type 1901 preamplifiers is used on our sound level meter productions. Type 1901 offer reliable performance and TEDS functionality. The ZXONIC preamplifier Type1914 is very compact and operates over a wide frequency range. It supports TEDS functionality for seamless sensor identification.
Most popular related searches
- BNC connector for easy installation and use
- Low inherent noise, high input impedance
- ICP® compatible
- Supports TEDS
-
Sound measurements with 1/4-inch ZXONIC and other compatible microphones
- Diameter: 1/4 inch
- Connector at Preamplifier: BNC
- Polarization Voltage: 0 V
- Low Distortion Frequency Response Range (±0.5 dB): 10 Hz - 100 kHz
- Frequency Response Range (±0.2 dB): 20 Hz - 20 kHz
- Input Impedance: ≥10 GΩ
- Input Capacitance: ≤ 0.35 pF
- Harmonic Distortion: ≤ 0.1% (1V/1 kHz)
- Output Voltage: ≥ 5 Vrms @ 45 V
- Output Impedance: ≤ 50 Ω
- Power Supply: ICP 2 mA – 20 mA
- TEDS: YES
- Operating Temperature Range [°C]: -20°C to 60°C
- Operating Humidity: 30% – 90%
