Zxonic Family PrePolarized - Model 1036 Series -1/4 Inch Pressure-Field Microphone, 3.15 Hz – 70 kHz
Type 1036 is designed for high-level, high frequency pressure-field measurements in confined spaces. The 1036 Series offer a frequency range of 3.15 Hz to 70 kHz and measure from 53 to 176 dB, and is pre-assembled with CCLD preamplifiers only. The Type 1036 Series offers pre-polarized, pre-assembled ¼″ pressure-field microphone sets designed for high-level and high frequency measurements. Compact and robust, the Type 1036 Series delivers a wide frequency range from 3.15 Hz to 70 kHz and a dynamic range spanning 53 to 176 dB, making it ideal for demanding acoustic environments such as impulse noise, transducer testing, and ultrasonic applications.
Assembly
Each unit is assembled in a clean-room environment to ensure high-quality performance and minimal contamination. Both the microphone and preamplifier are individually labeled with a printed type number and a unique serial number for traceability.
TEDS
The unit is equipped with TEDS (Transducer Electronic Data Sheet) functionality, allowing important information—such as type number, serial number, and sensitivity—to be stored directly within the device for seamless identification and system integration.

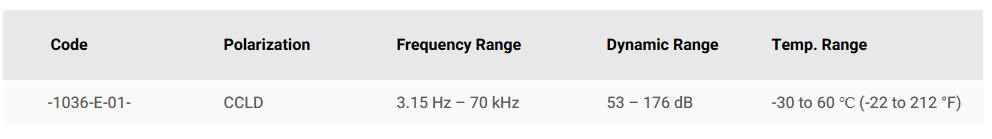

- Standard: IEC 61094
- Frequency response characteristics: Pressure-field
- Polarization voltage [V]: CCLD
- Sensitivity [mV/Pa]: 1 mV/Pa
- Lower limiting frequency: 3.15 Hz
- Higher limiting frequency: 70 kHz
- Cartidge thermal noise: 53 dB(A)
- Dynamic range: 53 - 176 dB(A)
- Diameter: 1/4 inch
- Venting: Side
- Operating temperature range: -30 - 60 ℃ (-22 to 212 °F)
