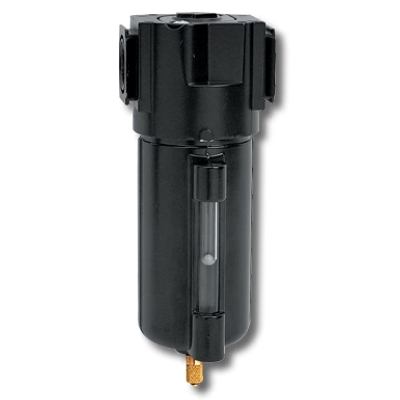

Arrow Pneumatics - Model F552FW -1/4" Standard Coalescing Filter
The Arrow Pneumatics 1/4" Oil Removing Filter is designed to deliver ultra-clean compressed air by removing fine oil aerosols, water mist, and sub-micron particulates. Built for 1/4" NPT piping and supporting up to 24 SCFM, this filter is ideal for industrial, spray finishing, laboratory, and precision air applications.
1/4" Standard Coalescing Filter – 0.03 Micron Element, 6 oz Metal Bowl with Sight Glass, Auto Drain, 24 SCFM, 175 PSI Max.
- Coalescing Oil-Removing Filter for Compressed Air Systems: Removes oil mist, sub-micron particles, and contaminants—delivers clean, dry air for critical operations.
- High-Efficiency 0.03 Micron Filter Element: Captures extremely fine oil aerosols and dirt particles—protects downstream tools and equipment.
- 6 oz Heavy-Duty Metal Bowl with Sight Glass: Durable metal construction with clear fluid monitoring—built to withstand rugged industrial use.
- Automatic Drain and Pop-Up Maintenance Indicator: Automatic moisture removal plus easy-to-see orange pop-up indicator alerts when servicing is required.
- Low Pressure Drop and Modular Installation: Handles up to 24 SCFM at 175 PSI—designed for in-line or modular installations with consistent performance and minimal system disruption.
Equipped with a 0.03 micron high-efficiency filter element, the unit traps even the smallest contaminants to protect sensitive downstream equipment. The 6 oz metal bowl with a sight glass allows easy visual monitoring of condensate, while the automatic drain ensures continuous removal of collected liquids without manual intervention.
A bright orange pop-up indicator alerts operators when maintenance is needed due to a clogged element or abnormal flow conditions, ensuring optimal system performance. Designed to operate at pressures up to 175 PSI and within a temperature range of 40°F to 120°F, this oil-removing filter provides reliable performance with low pressure drop for maximum system efficiency.
Durable, efficient, and easy to maintain, the Arrow 1/4" Oil Removing Filter is a key component in any high-purity compressed air setup.
- For use with: Compressed Air
- NPT: 1/4"
- Sintered Bronze Filter Element Size: .03 Micron
- Max Flow SCFM: 24
- Operating Temp Range (Degrees): 40°F to 120°F
- Manufacturers Warranty: 1 yr.
- UOM: EA
- Product Dimension: 2.75 in x 2.5 in x 7.63 in
- Safety Compliance: F552FW
- ELT: No
- UL: No
- FM Approved: No
- ISO 610 Compliance: No
- CA Proo 65: Yes
- Hazard Material Flag: No
- SDS Indicator: No
- Ozone Depleting Compounds: No
- Special Permit for any mode of Transport: No
- Product a Marine Pollutant: No
- Can Item be sold in all States: Yes
- Safety Data Sheets: No
- Is item safe with electronical compontes: No
- Does this prodcut operate by battery, solor or electricity: No
