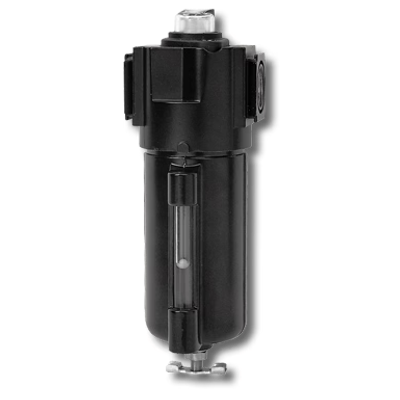

Arrow Pneumatics - Model F552W -1/4" Standard Coalescing Filter
The Arrow Pneumatics 1/4" Oil Removing Filter ensures ultra-clean compressed air by eliminating fine oil aerosols, water mist, and particulate contaminants. Built for 1/4" NPT connections and capable of 24 SCFM flow, this filter is perfect for precision air applications, including industrial plants, spray booths, and laboratory systems.
1/4" Standard Coalescing Filter – 0.03 Micron Element, 6 oz Metal Bowl with Sight Glass, Manual Drain, 24 SCFM, 250 PSI Max.
- Oil-Removing Coalescing Filter for Compressed Air Systems: Removes oil mist, fine particulates, and moisture—protects sensitive equipment and improves air system reliability.
- Ultra-Fine 0.03 Micron Filter Element: Captures sub-micron contaminants for superior air quality in industrial, spray, and laboratory applications.
- 6 oz Heavy-Duty Metal Bowl with Sight Glass: Durable metal bowl construction with visual fluid level monitoring—ideal for rugged environments.
- Easy Turn Manual Drain and Pop-Up Maintenance Indicator: Manual 1/8" NPT twist drain for quick condensate removal; orange pop-up indicator signals when filter maintenance is needed.
- Low Pressure Drop and Modular Installation Ready: Supports 24 SCFM flow and 250 PSI max pressure—designed for in-line or modular system integration with consistent high performance.
With its 0.03 micron high-efficiency filter element, the unit traps ultra-fine contaminants, enhancing the performance and life of downstream equipment. The 6 oz metal bowl with a sight glass provides clear visual monitoring, and the manual 1/8" NPT twist drain allows for fast, controlled condensate removal.
Designed for reliable operation up to 250 PSI and in temperatures from 40°F to 160°F, the unit also features an orange pop-up indicator that alerts operators to abnormal conditions like a clogged element or excessive flow—ensuring timely maintenance for maximum system efficiency.
Rugged, efficient, and easy to service, the Arrow 1/4" Oil Removing Filter is a critical component for any high-purity compressed air setup.
- For use with: Compressed Air
- NPT: 1/4"
- Sintered Bronze Filter Element Size: .03 Micron
- Max Flow SCFM: 24
- Operating Temp Range (Degrees): 40°F to 160°F
- Manufacturers Warranty: 1 yr.
- UOM: EA
- Product Dimension: 2.75 in x 2.5 in x 7.63 in
- Safety Compliance: F552W
- ELT: No
- UL: No
- FM Approved: No
- ISO 610 Compliance: No
- CA Proo 65: Yes
- Hazard Material Flag: No
- SDS Indicator: No
- Ozone Depleting Compounds: No
- Special Permit for any mode of Transport: No
- Product a Marine Pollutant: No
- Can Item be sold in all States: Yes
- Safety Data Sheets: No
- Is item safe with electronical compontes: No
- Does this prodcut operate by battery, solor or electricity: No
