WIC Valve - 1/8 inch Direct Acting Zero Differential Electric Solenoid Valve

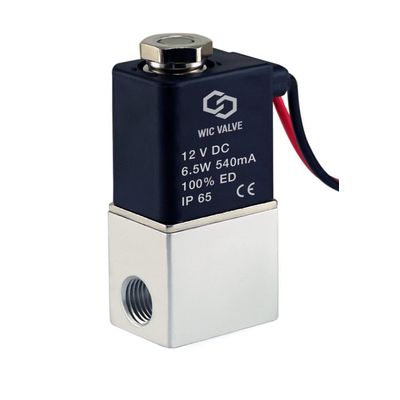

WIC Valve 2ACK series 2-way normally closed electric solenoid valve is to control On/Off of air and inert gas. This direct acting solenoid valve has one 1/8″ inch NPT inlet and one 1/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve has two holes in the bottom and can be mounted in any position. 2ACK series electric solenoid valve comes with a ED 100% coil which suitable to operate in continuous service and constantly energised. This solenoid valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required.
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Service Media: Air, Gas, Liquid, Water, Vacuum
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23 Cv (Fluid Flow), 22 SCFM (Air Flow) at 100 PSI
Response Time: Less than 20 ms
Body Material: Anodized Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Coil Certification: CE Certification
Coil Power: 6.5W DC Coil / 6.5VA AC Coil
Coil Class: F Class IP 65 (CE Certification)
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure: Vacuum to 115 PSI
Operating Temperature: -5 to 80 °C
Port Size: 1/8″ Inch NPT Female Port
Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
Electrical Connection: Grommet Coil with 12″” Lead Wire
Weight: 0.30 lbs
Dimensions: 3.00 × 3.00 × 1.00 in
Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
