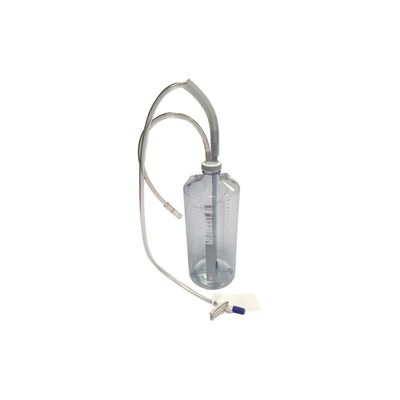

1-Bottle Drainage Set

Bottles and tubing in PVC specific for medical applications. The device consists of: aspirated liquid collection chamber of different materials such as impact-resistant plastic, PVC or glass. They are of different capacities, graduated every 10ml and provided with a screw closure in the upper part on which is inserted, in the adjustable model, an air intake. PVC connection tube, squeezable for possible removal of clots, with internal diameter 7mm and different lengths. The pipe is provided with a rigid PVC extension which can be adjusted in height with the function of a water valve, a pipe clamp in ABS and a spiral system in the upper part to avoid bottlenecks.– “air intake”, with controlled vacuum connection in PVC, about 385mm long and with an internal diameter of 7mm. universal PVC connector for connection to the thoracic catheter, equipped with Polysoprene sampling point and PE protective capsule.
