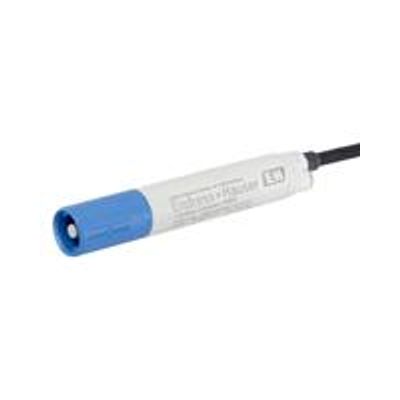

Liquiline - Model CM82 -1-Channel Transmitter Compact
Multiparameter field device for hazardous and non-hazardous applications in all industries. The Liquiline Compact CM82 is the smallest transmitter for Memosens sensors. Its slender housing measures only 11 cm long and 2 cm wide, including a connection to which you can attach your sensor directly, without a cable. Together with the sensor, it fits into most assemblies and couldn’t be easier to install. Via a uniquely secure Bluetooth connection, you can see all nearby CM82 measuring points on your tablets or smartphones and operate them conveniently from a distance.
-
Easy operation:
Use your existing tablets and smartphones for operation and commissioning. -
Fast and reliable:
A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance. -
Benefit from all the advantages of Memosens technology:
Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use. -
Space-saving installation:
The two-wire device fits inside an assembly and does not require its own power supply. -
Suitable for all locations:
Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM82 will always be exactly the right transmitter for you.
Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:
-
pH sensors
-
ORP sensors
-
Conductivity sensors
-
Oxygen sensors
-
Chlorine sensors
The loop-powered two-wire transmitter features the following protocols and interfaces:
-
4...20 mA
-
HART
-
Bluetooth
With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use.
Conductivity / ORP / Redox / Oxygen
-
Measuring principle
Glass electrode
-
Measuring principle
Glass electrode
-
Application
The device with its robust and very small housing is designed for the following applications:
"Chemical processes
"Pharmaceutical industry
"Applications in hazardous areas -
Installation
Connection of digital sensors with Memosens-Protocol
-
Characteristic
Liquiline CM82 is a two-wire transmitter for all areas of process engineering.
-
Design
Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets.
-
Material
PEEK
-
Dimension
peek housing size 115x19mm
-
Connection
Connection of digital sensors with Memosens-Protocol
-
Ingres protection
IP67, IP68, NEMA Type 6 enclosure
-
Input
One channel transmitter
-
Output
4-20 mA, HART
-
Additional certifications
CE, CSA C/US GP
