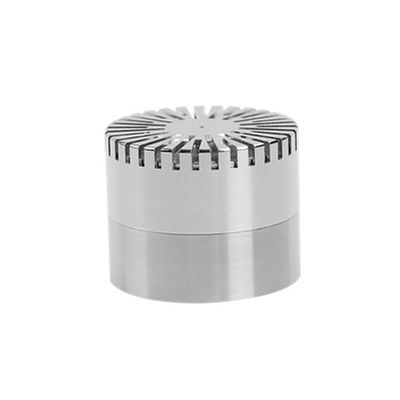

Zxonic PrePolarized - Model Type 1011 -1 Inch Free-Field Microphone, 0 Hz – 16 kHz
FromZXONIC
Type 1011 is designed for low-level, laboratory, free-field measurements. Type 1011 is compatible with both TEDS enabled and classical preamplifiers.
Most popular related searches
free-field microphone
level monitoring
microphone cartridge
field monitoring
acoustic transducer
field laboratory
- Dyn. range: 6.5 – 137 dB
- Freq. range: 10 – 16000 Hz
- Polarization: Prepolarized
- Sensitivity: 100 mV/Pa
- Standards: IEC 61094-4 WS1F
Typical Use Cases
- Low-level measurements
- Laboratory measurements
- Compliance with IEC 61094-4 WS1F
- Standard: IEC 61672
- Frequency reponse characteristics: Free-field
- Polarization voltage [V]: 0
- Sensitivity [mV/Pa]: 100 mV/Pa
- Lower limiting frequency: 10 Hz
- Higher limiting frequency: 16 kHz
- Cartidge thermal noise: 6.5 dB(A)
- Dynamic Range: 6.5 - 137 dB(A)
- Diameter: 1 inch
- Venting: Side
- Operating temperature range: -30 - 80
- Operating humidity range: 0 - 100% RH without condensation
