Zxonic Family PrePolarized - Model 1011 -1 Inch Free-Field Microphone, 10 Hz - 16 kHz
The Type 1011 Series are high sensitivity, pre-polarized, 1″ free-field microphone sets. Designed for low-level measurements, the 1011 Series offers a dynamic range from 6.5 to 137 dB.
The unit is assembled in clean-room environment. Each microphone and preamplifier can be identified by a printed type number and a unique serial number. The unit has TEDS available, which means that information about the serial number, type and sensitivity is stored within it.
Most popular related searches
free-field microphone
field microphone set
microphone set
cleanroom environment
level monitoring
field monitoring
cleanroom
acoustic transducer
dynamic range (db)

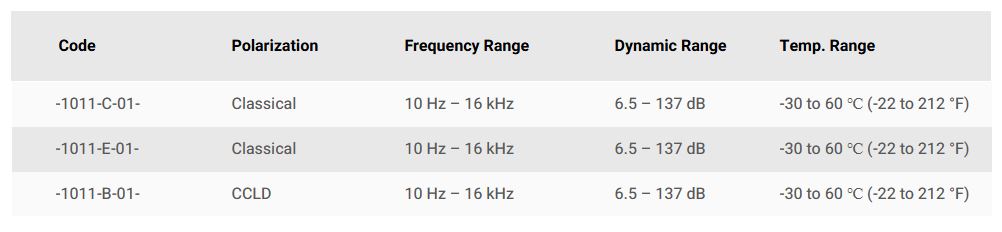

Type 1011 is designed for low-level, free-field measurements. The 1011 Series has low noise floors of 6.5 dB, and is compatible with CCLD and classical preamplifiers.
- Frequency response characteristics: Free-field
- Polarization voltage [V]: CCLD, Classical
- Sensitivity [mV/Pa]: 100 mV/Pa
- Lower limiting frequency: 10 Hz
- Higher limiting frequency: 16 kHz
- Cartidge thermal noise: 6.5 dB(A)
- Dynamic range: 6.5 - 137 dB(A)
- Diameter: 1 inch
- Venting: Side
- Operating temperature range: -30 - 60 ℃ (-22 to 212 °F)
